Printer Gateway for AS/400, iSeries, i5 & S/390 – zSeries

A Print Server Gateway to Support AFP/IPDS
on LAN Attached Canon Printers and
Multi-Function Printers (MFP)

PLEASE NOTE:  All "dp", "e" and "km" models of I-O Corporation 5435, 5735 and 5755 IPDS Print Servers and Print Server Gateways are no longer manufactured.   The replacement for the 5435e, 5735e and 5755e is the next generation I-O Win10 Adaptio IPDS Print Server Gateway .  Please click here to be taken to the Win10 Adaptio IPDS Print Server Gateway page.

Overview

The I-O Corporation 5735dp IPDS Print Server Gateway is a high speed Ethernet-in, Ethernet-out print server designed to convert native IBM host print jobs to PCL, allowing them to be printed on a  Canon Laser Printer, Copier or multi-functional product (MFP). The I-O 5735dp Gateway delivers IBM AFP/IPDS and SCS printing via Ethernet, and provides the control and printer feedback found in an IBM host environment.

In addition to IBM host connectivity, they support the Canon's value added finishing features on the imageRUNNER higher end models.

If you have multiple Canon printers or MFPs, the 5755dp Gateway that supports three printers may be the better solution for you. Click here for information on the 5755dp.

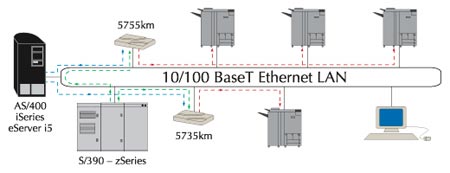

IO-5735km / 5755km Network Diagram

Click here for more information on the 5735dp AFP/IPDS/SCD Gateway

Other IPDS models are available if you do not need the Canon-Mita finishing functions.  Click here for these other options and model numbers.

Features

  • Supports Canon-Mita finishing features: duplexing, collating, stapling, hole punching, etc.

  • Supports Advanced Function Printing (AFP) using IPDS protocol

  • Also supports standard Host printing using SCS protocol

  • High Speed printing - over 100 pages per minute

  • Supports over 100 AFP/IPDS Fonts

  • 10 / 100 Mbps Ethernet LAN, auto sensing

  • Multiple LAN protocols - TCP/IP (PPR/PPD, TN5250e, LPR/LPD), SNA (APPC), AnyNet (SNA over TPC/IP)

  • Host printing via Telnet (TN5250e and TN3270E), SNA (APPC) or AnyNet

  • Simple, one step set-up (auto configuration) when using TN5250e or TN3270e

  • Host controlled Printing, including error reporting, page range printing etc.

  • I-O's award winning IBM AFP/IPDS and SCS printer emulations

  • Easy to install and use, includes I-O's Configuration Utility software

High Speed Printing

Attached to the LAN, the 5735dp supports the high-speed and high-performance Canon printers and MFPs.  Whether printing from an IBM i5, iSeries, AS/400 or a zSeries-S/390, fast printing can be obtained.  Data conversion is accomplished at the 5735dp and sent to the printer via the Ethernet LAN.  Without the bottleneck of the parallel port the 5735dp supports high-speed printing featured in Canon printers

Full Printing Control from IBM Host

The 5735dp offers the same reliable, full-function IBM host printing and control found with direct Twinax/Coax attached printers. With the 5735dp, IBM host print jobs are not lost in the black hole of LAN printing. The 5735dp provides bi-directional communication between the Canon printers and the IBM host, allowing error reporting and page range printing.


Easy to Use

I-O's Configuration Utility software is included with every 5735dp. Whether selecting TCP/IP or SNA, configuration is made easy through the use of a menu-based utility.


Click here for more information on the 5735dp IPDS / SCS Gateway

Technical Specifications

SPECIFICATION

For iSeries AS/400

For IBM zSeries S/390

Protocols

TCP/IP (PPR/PPD, TN5250e, LPR/LPD), SNA (APPC), AnyNet (SNA over TPC/IP)

TCP/IP (PPR/PPD, LPR/LPD), TN3270e

IPDS Emulations

IBM 4028 AS1, 3812-2, 3816-1D/S, Includes 4312/17 font support

IBM 4028 AS1, 3812-2, 3816-1D/S, Includes 4312/17 font supports

SCS Emulations

IBM 3812-1, 4214, 5224, 5225, 5256

n/a

IPDS Towers

Supports all towers

Supports all towers

System Requirements

OS/400 Release 3.1 or higher

PSF/400 required for connection using TCP/IP (PPR/PPD)

OS/390 or MVS: PSF/MVS Version 2.2.0 with APR OW15599, MVS Scheduler with APRA 0212236, TCP/IP Version 3.1 or higher

Supported printers

Ethernet Connection: Port 9100, PJL unsolicited messages, PCL 3/5e

Parallel Connection: Dot Matrix (SCS only), Laser (IPDS/SCS)

Ethernet Connection: Port 9100, PJL unsolicited messages, PCL 3/5e

Parallel Connection: Dot-Matrix (SCS only), Laser (IPDS/SCS)

General

Ethernet Connections:  Auto-sensing 10/100BaseT
Printer Ports: One IEEE 1284 bi-directional Centronics parallel port
Power Supply: 100-240 auto-switching
Configuration: I-O Configuration Utility installed on a PC

Plus a wide range of additional features that boost productivity and performance.

Features Benefits
AFP/IPDS & SCS Printing

IBM host print jobs can be printed on a single Canon printer in an Ethernet environment

High Speed Printing, 100+ ppm

Data conversion is accomplished at the 5735dp and sent to the printer via the Ethernet LAN - Without the bottleneck of the parallel port the 5735dp supports high-speed printing featured in Canon printers

I-O Customized Finishing Comands

Canon finishing features such as duplexing, collating, stapling, folding, hole-punching, etc. can be utilized in a host environment

Full IBM Host Control of Print Jobs

The 5735dp provides bi-directional communication between the host and the printer, via port 9100 and PJL commands

Remote Printing

The printer can be attached locally or remotely via a WAN or VPN network. The printer does not need to be next to the 5735dp.

I-O's Award Winning Printer Emulations

All AFP/IPDS and SCS functions such as duplex, page offset, COR, fonts and barcode, are fully supported by the 5735dp.

Enhanced Telnet 5250 (TN5250e) and Telnet 3270 (TN3270e)

Communicates with the IBM Host using native TCP/IP.

Page Offset Functions

Provides more flexibility in page positioning with no need to modify host applications.

Supports over 100 AFP/IPDS Fonts

There are more fonts to choose from than other AFP/IPDS interfaces.

On-board FLASH Memory

Allows for field upgrades providing the latest new features from I-O.

Printer error reporting to the host

Prevents loss of host print data by providing the same level of print status reporting as a Twinax or coax printer.

Page range printing

Permits users to print select page ranges from large documents and reports.

Off-loading of Data Conversion

Eliminates unnecessary overhead by converting EBCDIC data to ASCII data directly on the I-O 5735dp.

Simultaneous, multi-host printing

Maximizes printer utilization by supporting concurrent printing from the host.

10BaseT and 100BaseT

Provides versatility in attaching to LANs at different speeds.

Host auto configuration

Installs in minutes.

Model Numbers & Ordering Information

ITEM NO. DESCRIPTION

SUPPORT FOR Canon
FINISHING FUNCTIONS

IO 5755DP

AFP / IPDS Print Server -
IP in / IP out , 3 Printer Support

Yes - Call us for Pricing
at 800-597-2525

IO 5755E

AFP / IPDS Print Server
IP in / IP out , 3 Printer Support

No - $ 1695.00

IO 5735DP

AFP / IPDS Print Server
IP in / IP out , 1 Printer Support

Yes - Call us for Pricing
at 800-597-2525

IO 5735E

AFP / IPDS Print Server
IP in / IP out , 1 Printer Support

No - $ 795.00

IO 5435E

AFP / IPDS Print Server
IP in / Parallel Out , 1 Printer Support

No - $ 749.00



Back to 5735DP Features

Download the Datasheet on the I-O 5735dp Gateway
