Print Server Gateway to Connect Printers,
Copiers, and MFPs to IBM iSeries AS/400s & zSeries S/390 Systems and Provide Full Support for AFP/IPDS
Printing
PLEASE NOTE: All "dp", "e" and "km" models of I-O Corporation 5435,
5735 and 5755 IPDS Print Servers and Print Server Gateways
are
no longer manufactured. The replacement
for the 5435e, 5735e and 5755e is the next generation
I-O Win10 Adaptio IPDS Print Server Gateway .
Please click here to be
taken to the Win10 Adaptio IPDS Print Server Gateway page.
Overview

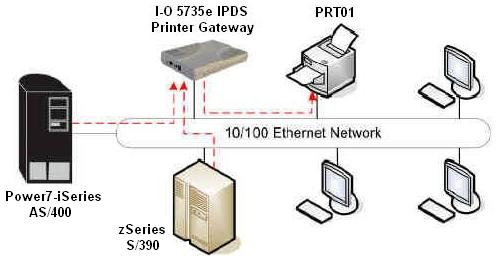

The I-O 5735e IPDS/SCS Printer Gateway
is a
high speed Ethernet-in, Ethernet-out IPDS/SCS gateway print server
designed to convert native IBM host print jobs to PCL, allowing them to be
printed by a laser printer on the LAN. Supporting up to three printers,
the 5735e delivers IBM AFP/IPDS and SCS printing via TCP/IP, providing the
control and printer feedback found in an IBM host environment.
If you have more than 3 printers you need
to have connected to your IBM host, the
5765e IPDS Print
Server
Gateway may be a better solution. It will support up
to 10 network attached printers, copiers or MFPs.
Click here and you will be taken to the
5765e Gateway page.
Features
-
Connects
three PCL 5e
compatible Ethernet capable laser printers or MFP
devices
-
Supports Advanced Function
Printing (AFP) using IPDS protocol
-
Also supports standard Host
printing using SCS protocol
-
High
speed printing - over 100 pages per minute
-
Supports over 100 AFP/IPDS
Fonts
-
10 / 100 Mbps Ethernet LAN,
auto sensing
-
Multiple Host support
(Power9, Power8 and all iSeries
AS/400, and z14, z13 and all zSeries S/390)
-
Multiple
LAN protocols (TCP/IP, SNA, ANYNET)
-
Host
printing via TCP/IP Telnet (TN5250e and TN3270e), SNA (APPC) or AnyNet
-
Simple, one step set-up
(auto configuration) when using TN5250e or TN3270e
-
Host
controlled printing, including error reporting, page range
printing etc.
-
I-O's award winning IBM AFP/IPDS
and SCS printer emulations
-
Increases print speeds
-
Easy to install and use,
includes I-O's Configuration Utility software
High Speed Printing
Attached to the LAN, the 5735e supports high-speed, high-performance
printers. Without the bottleneck of a slow parallel port, the 5735e
supports over 100 pages per minute. Whether printing from an IBM
iSeries-AS/400 or a zSeries-S/390, fast printing can be obtained with
laser printers supporting port 9100. In addition to the Ethernet
connection, the 5735e has a parallel port to directly attach one printer
(laser or dot-matrix).
Full Printing Control from IBM Host
The 5735e offers the same reliable, full-function IBM host printing and
control found with direct Twinax/coax attached printers. With the 5735e,
IBM host print jobs are not lost in the black hole of LAN printing. The
5735e provides bi-directional communication between the printer and the
IBM host, allowing error reporting and page range printing.
Easy to Use
I-O's Configuration Utility software is included with every
5735e.
Whether selecting TCP/IP or SNA, configuration is made easy through the
use of a menu-based utility.
Please call us at 1-908-688-8100 or 1-800-597-2525
for Alternative Solutions for Out of Stock Products
|
|
|
|
Click
here for more information on the 5735e IPDS / SCS Gateway
Technical Specifications
SPECIFICATION |
For
iSeries AS/400 |
For
IBM zSeries S/390 |
Protocols |
TCP/IP (PPR/PPD, TN5250e, LPR/LPD), SNA (APPC), AnyNet (SNA over
TCP/IP) |
TCP/IP (PPR/PPD, LPR/LPD), TN3270e |
IPDS
Emulations |
IBM 4028 AS1, 3812-2, 3816-1D/S, Includes 4312/17
font support |
IBM 4028 AS1, 3812-2, 3816-1D/S, Includes 4312/17
font supports |
SCS
Emulations |
IBM 3812-1, 4214, 5224, 5225, 5256 |
n/a |
IPDS Towers |
Supports all towers |
Supports all towers |
System
Requirements |
OS/400 Release 3.1 or higher
PSF/400 required for
connection using TCP/IP (PPR/PPD) |
OS/390 or MVS: PSF/MVS Version 2.2.0 with APR OW15599, MVS Scheduler with APRA
0212236, TCP/IP Version 3.1 or higher |
Supported
printers |
Ethernet Connection:
Port 9100, PJL unsolicited messages, PCL 3/5e
Parallel Connection:
Dot Matrix (SCS only), Laser (IPDS/SCS) |
Ethernet Connection:
Port 9100, PJL unsolicited messages, PCL 3/5e
Parallel Connection:
Dot-Matrix (SCS only),
Laser (IPDS/SCS) |
General Specifications |
Ethernet
Connections: Auto-sensing 10/100BaseT
Printer Ports: One IEEE 1284 bi-directional Centronics parallel port
Power Supply: 100-240 auto-switching
Configuration: I-O Configuration
Utility installed on a PC |
Plus a wide range of additional features that boost productivity and
performance.
Features |
Benefits |
High
Speed Printing, 100+ ppm |
Data conversion is
accomplished at the 5735e and sent to the printer via the Ethernet
LAN. The 5735e takes advantage of high-speed, high-performance
printers without the bottleneck of the parallel port. |
Supports
up to 3 Attached LAN Printers |
Three laser
printers can be configured as AFP/IPDS and/or SCS virtual
printers. |
AFP/IPDS
& SCS Printing |
IBM host printing
to LAN attached printers can be accomplished easily in an Ethernet
environment. |
Full
IBM Host Control of Print Jobs |
The 5735e provides
a bi-directional communication between the host and the printer,
via port 9100 and PJL commands. |
Remote
Printing |
The printers can
be attached locally or remotely via a WAN or VPN network. Printers
do not need to be next to the 5735e. |
One
Parallel Port |
One laser or
dot-matrix printer can be directly attached to the 5735e for IBM
host to LAN printing jobs. |
I-O's
Award Winning Printer Emulations |
All AFP/IPDS and
SCS functions such as True Print Complete, AFP/IPDS and SCS
Duplex, Page Offset, COR, Fonts, Barcode, are fully supported by
the 5735e. |
Download the
Datasheet
on the I-O 5735e Gateway
Click
here for more information on the 5735e AFP/IPDS/SCD Gateway
