I-O 2677M Twinax Display Module for System i, i5, iSeries, AS/400 and S/36

An InfoWindow Compatible
Modular Twinax Display Station/Terminal
for the i5, iSeries, AS/400 and S/36

PLEASE NOTE: The I-O 2677m has been discontinued and is only available as a refurbished unit on an "as available" basis.
The direct replacement product is the CLI 5476 Modular Twinax Terminal. Please click here to be taken to the CLI 5476 Twinax Terminal page.

Overview

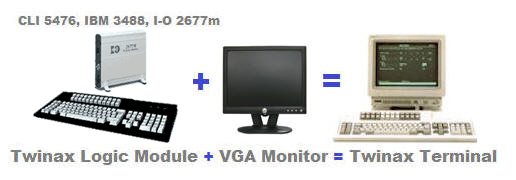

The I-O 2677M Modular Twinax Display Station is a low cost, modular midrange Twinax display station which is compact and fully featured. The I-O 2677M includes the Twinax Logic Module, a 122-key or 102-key keyboard, Twinax-Y Cable and a universal power supply.

PLEASE NOTE: The I-O 2677m is only available as a refurbished product. We also have the following refurbished Twinax terminals available. They are fully compatible alternatives to the 2677m.

IBM 3488 Modular Color Twinax Terminal

CLI 5476, 5477 & 5488 Modular Color Twinax Terminals

The I-O 2677M provides outstanding benefits such as: (Click on Picture above for additional specifications)

Exclusivity - Exclusive features such as Twinax Monitor Mode

Multi-Session - Four session (3 Display / 1 Printer) for multi-task functionality

Compact Design - Requires minimal space

Parallel Printer Port - Printing flexibility at a very low cost. Can be System Addressable or local for screen prints (local use does not require a Twinax address)

High Resolution - Sharp, easy-to-read characters

Uses Standard LCD Color Monitor or SVGA Color Monitor* - Can use any PC SVGA PC type color monitor as the Display (*optional)

Features

Attaches to: System i, i5, iSeries, AS/400, System/36, /38, 5294, 5394, 5494, and I-O, Decision Data, Perle compatible remote controllers

Multiple Sessions: 3 Display + 1 Printer

Multiple Emulations: 3180, 3196, 3197C & D, 5251-11, 5291, 3487C Non Info Window

Host Addressable Parallel Printer Port

Multiple Language Support:
US/Canadian English, UK English, Austrian/ German, Swiss-German, French (AZERTY), Belgian (AZERTY), Swiss-French, Canadian French, Italian, Spanish, L/A Spanish, Portuguese, Swedish, Finnish, Danish, Norwegian, Dutch, and Multinational

Auto Terminating Twinax "Y" Cable

The I-O 2677M* includes a 90-Day Warranty. The I-O 2677M is a leader in modular Twinax display stations for those who have not made the jump to Ethernet connectivity and those who need the rock solid stability of "green screen" Twinax Terminals.

* Monitor not included.

Click here for more information on the I-O Corporation 2677m Twinax Terminal

Purchase On Line

Additional Features

Features	Benefits
VESA-DPMS Power Saver Mode	Reduces power consumption on the monitor.
Horizontal Split Screen	80/80, 80/132, 132/132 modes for multi-task operation.
Auto Dim/Power Saver Mode	Saves 40-50% of power, reduces power consumption to 18 watts.
Multiple Printer Emulations	5224, 5225, and 5256 emulations allow flexible, low cost printing.
Printer Control from Keyboard	New Line, Form Feed, Stop, Start, and Cancel are all available from the keyboard.
I-O Command Pass-Thru™TM	Allows control of all user-programmable features of the printer.
Local Screen Print	Local print copy at any time.
Type Ahead Feature	Allows keystrokes to be typed when display is inhibited.
Record/Pause/Play Function	Up to 1570 keystrokes of Record/Pause/Playback past enter with security options.
Overscan/Reverse Video	Reverse the background and text of the screen.
Software Security	Blanks the screen and inhibits input from the keyboard without signing off the display.
Printer Code Editor	Allows customization of printer tables which provide attachment to various printers.
Twinax Monitor Mode	Diagnostic tests that indicate what is occurring on the Twinax cable.

Technical Specifications

Item	Feature / Description
Display	Supports VGA/SVGA monitors (optional)
Columns	80 column - 960 x 416 or 132 column - 1056 x 435
Sessions	3 display, 1 printer (DDDP)
Keyboard	122-key (standard) or 102/103-key (optional), low profile, adjustable height, tactile keys
Approvals	Display Module: FCC Part 15, Energy Star, CE Power Supply: UL, CSA, CE, Baurt
Power	100-250 VAC 47-63 Hz Auto-ranging
Environment	+32° to 105° F (0° to +40° C)
