A
Print Server Gateway to Connect Printers,
Copiers, and MFPs to IBM iSeries AS/400s & zSeries S/390 Systems and Provide Full Support for IPDS
Printing
PLEASE NOTE: All "dp", "e" and "km" models of I-O Corporation 5435,
5735 and 5755 IPDS Print Servers and Print Server Gateways
are
no longer manufactured. The replacement
for the 5435e, 5735e and 5755e is the next generation
I-O Win10 Adaptio IPDS Print Server Gateway .
Please click here to be
taken to the Win10 Adaptio IPDS Print Server Gateway page.
Overview

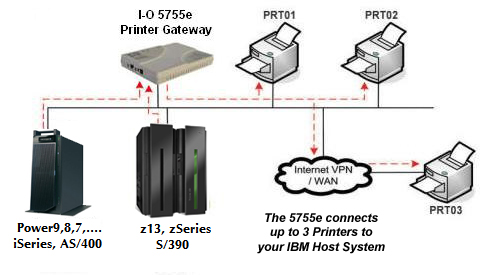

The I-O 5755e IPDS/SCS Printer Gateway
is a
high speed Ethernet-in, Ethernet-out IPDS/SCS gateway print server
designed to enable IPDS Printing on network attached laser printers by converting native IBM host print jobs to PCL. Supporting up to three printers,
the 5755e delivers IBM IPDS printing and SCS printing over IP, providing the
control and printer feedback found in an IBM host environment.
If you need IPDS printing
from more than three printers, the
Win10 IPDS Print
Server Gateway will be a better solution. It will support up
to 20 network attached printers, copiers or MFPs.
Click here and you will be taken to the
Win1j0 IPDS Print Server Gateway page.
Features
-
Connects
three PCL 5e
compatible Ethernet capable laser printers or MFP
devices
-
Enables IPDS Printing and Advanced Function
Printing (AFP) using IPDS protocol
-
Also supports standard Host
printing using SCS protocol
-
High
speed printing - over 100 pages per minute
-
Supports over 100 AFP/IPDS
Fonts
-
10 / 100 Mbps Ethernet LAN,
auto sensing
-
Multiple Host support
(Power9, Power8 and all iSeries
AS/400, and z14, z13 and all zSeries S/390)
-
Multiple
LAN protocols (TCP/IP, SNA, ANYNET)
-
Host
printing via TCP/IP Telnet (TN5250e and TN3270e), SNA (APPC) or AnyNet
-
Simple, one step set-up
(auto configuration) when using TN5250e or TN3270e
-
Host
controlled printing, including error reporting, page range
printing etc.
-
I-O's award winning IBM AFP/IPDS
and SCS printer emulations
-
Increases print speeds
-
Easy to install and use,
includes I-O's Configuration Utility software
High Speed Printing
Attached to the LAN, the 5755e supports high-speed, high-performance
printers. Without the bottleneck of a slow parallel port, the 5755e
supports over 100 pages per minute. Whether printing from an IBM
iSeries-AS/400 or a zSeries-S/390, fast IPDS printing can be obtained with
laser printers supporting port 9100. In addition to the Ethernet
connection, the 5755e has a parallel port to directly attach one printer -
laser, dot-matrix or label printer. IPDS printing only
supported on laser printers..
Full Printing Control from IBM Host
The 5755e offers the same reliable, full-function IBM host printing and
control found with direct Twinax/coax attached printers. With the 5755e,
IBM host print jobs are not lost in the black hole of Remote Out Queue printing. The
5755e provides bi-directional communication between the printer and the
IBM host, allowing error reporting and page range printing.
Easy to Use
I-O's Configuration Utility software is included with every 5755e.
Whether selecting TCP/IP or SNA, configuration is made easy through the
use of a menu-based utility.
Please call us at 1-908-855-8100 or 1-800-597-2525
for Alternative Solutions for Out of Stock Products
|
|
|
|
Click
here for more information on the 5755e IPDS / SCS Gateway
Technical Specifications
SPECIFICATION |
For
iSeries AS/400 |
For
IBM zSeries S/390 |
Protocols |
TCP/IP (PPR/PPD, TN5250e, LPR/LPD), SNA (APPC), AnyNet (SNA over
TCP/IP) |
TCP/IP (PPR/PPD, LPR/LPD), TN3270e |
IPDS
Emulations |
IBM 4028 AS1, 3812-2, 3816-1D/S, Includes 4312/17
font support |
IBM 4028 AS1, 3812-2, 3816-1D/S, Includes 4312/17
font supports |
SCS
Emulations |
IBM 3812-1, 4214, 5224, 5225, 5256 |
n/a |
IPDS Towers |
Supports all towers |
Supports all towers |
System
Requirements |
OS/400 Release 3.1 or higher
PSF/400 required for
connection using TCP/IP (PPR/PPD) |
OS/390 or MVS: PSF/MVS Version 2.2.0 with APR OW15599, MVS Scheduler with APRA
0212236, TCP/IP Version 3.1 or higher |
Supported
printers |
Ethernet Connection:
Port 9100, PJL unsolicited messages, PCL 3/5e
Parallel Connection:
Dot Matrix (SCS only), Laser (IPDS/SCS) |
Ethernet Connection:
Port 9100, PJL unsolicited messages, PCL 3/5e
Parallel Connection:
Dot-Matrix (SCS only),
Laser (IPDS/SCS) |
General Specifications |
Ethernet
Connections: Auto-sensing 10/100BaseT
Printer Ports: One IEEE 1284 bi-directional Centronics parallel port
Power Supply: 100-240 auto-switching
Configuration: I-O Configuration
Utility installed on a PC |
Plus a wide range of additional features that boost productivity and
performance.
Features |
Benefits |
High
Speed Printing, 100+ ppm |
Data conversion is
accomplished at the 5755e and sent to the printer via the Ethernet
LAN. The 5755e takes advantage of high-speed, high-performance
printers without the bottleneck of the parallel port. |
Supports
up to 3 Attached LAN Printers |
Three laser
printers can be configured as AFP/IPDS and/or SCS virtual
printers. |
AFP/IPDS
& SCS Printing |
IBM host printing
to LAN attached printers can be accomplished easily in an Ethernet
environment. |
Full
IBM Host Control of Print Jobs |
The 5755e provides
a bi-directional communication between the host and the printer,
via port 9100 and PJL commands. |
Remote
Printing |
The printers can
be attached locally or remotely via a WAN or VPN network. Printers
do not need to be next to the 5755e. |
One
Parallel Port |
One laser or
dot-matrix printer can be directly attached to the 5755e for IBM
host to LAN printing jobs. |
I-O's
Award Winning Printer Emulations |
All AFP/IPDS and
SCS functions such as True Print Complete, AFP/IPDS and SCS
Duplex, Page Offset, COR, Fonts, Barcode, are fully supported by
the 5755e. |
Download the
Datasheet
on the I-O 5755e Gateway
Click
here for more information on the 5755e AFP/IPDS/SCD Gateway
5755e IPDS Print Server Gateway
|
