Printer Interface Connectivity Diagrams

Back to I-O Corporation Printer Interfaces

Click on the links in the left hand column for more information on these products.

iSeries/zSeries Print Server Gateway to LAN Attached Printers

SCS Print Server Gateways

5730e - 1 LAN printer

5750e - 3 LAN Printers

5760e - Up To 10 LAN Printers

IPDS Print Server Gateways

5735e - 1 LAN Printer

5755e - 3 LAN Printers

5765e - Up To 10 LAN Printers

iSeries/zSeries Print Server to Parallel/Serial Printers

SCS Print Servers

5430e - 1 Parallel printer

5450e - 2 Parallel Printers and
1 Serial Printer

5430b - 1 Parallel Barcode Printer

5431b - 1 Serial Barcode Printer

IPDS Print Servers

5435e - 1 Parallel Laser Printer

iSeries/zSeries Print Server to Parallel/Serial Barcode Printers

SCS Barcode Print Servers

5430b - 1 Parallel Barcode Printer

5431b - 1 Serial Barcode Printer

iSeries IP Print Server/Controllers - Connect Twinax Printers Over IP

IP-to-Twinax Print Servers/Controllers

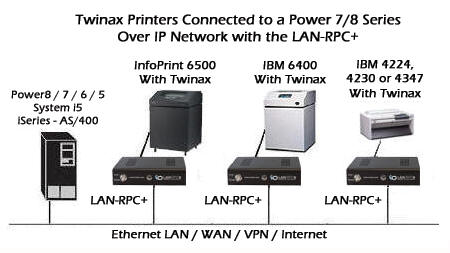

LAN-RPC+ - 1 Twinax Printer
XIP+ - Multiple Twinax Printers

Twinax/Coax-to-Parallel/Serial Printer Interfaces

SCS Twinax Printer Interfaces

TXP+ - 1 Parallel Printer

TXS+ - 1 Serial Printer

4440PTX - 1 Parallel Barcode Printer

4440STX - 1 Serial Barcode Printer

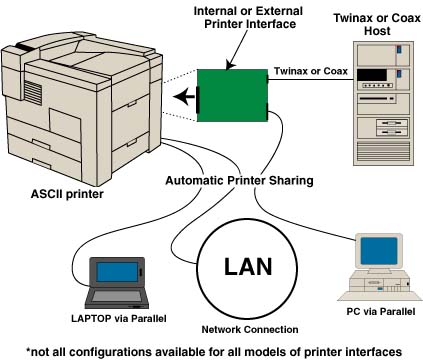

Connectivity Diagram.jpg (31698 bytes)
