Powerful & Rugged for Heavy Duty IBM System Applications
PLEASE NOTE: The 4347-i08 has been replaced with
the upgraded and
faster 4347-i09. |
|
|
|
|
Overview
The

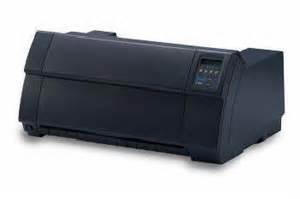

Tally 4347-i08
printers represent high
throughput print speeds, rugged
durability and unsurpassed
performance under the most
extreme conditions.
These workhorse printers
guarantee crisp, dark, clear and
legible print thanks to the
advanced engineering of the 24
pin print head. This head is
built for long life and a heavy
workload so even in the most
challenging operating
environment, you can be assured
of the best in quality and
performance.
Low running cost and durability
in the harshest of print
environments make these products
excellent value for the money.
Click here for more information on the Tally - Dascom 4347-i08
Available Configurations
|
MODEL NUMBER |
DESCRIPTION |
|
Tally - Dascom 4347-i08 |
Single Tractor Model |
|
Tally - Dascom 4347-i08-2T |
Dual Tractor Model - Front and Rear |
Click here to compare the 4347-i08 and the 4347-i10 Printers
Specifications
|
ITEM |
4347-i08 Multiform Printer |
|
Print Speed
High Speed Quality: 12 cpi
Data Print
Quality: 10 cpi |
- >
800
CPS |
|
Throughput |
440 pages/hour - DP
Quality 10 cpi (approx.) |
|
Character Density |
5, 6, 7.5, 8.6, 10, 12, 15, 17.1, 20 cpi (Emulation dependent) |
|
Line Density |
2, 3, 4, 6, 8, 12 lpi |
|
Number of Copies |
Up to 9 part forms, 2 part forms for rear tractor of 4347-i08-2T model |
|
Paper Type |
Continuous forms |
|
Paper Size |
Width: 3 inch minimum to 16.5 inch maximum |
|
Paper Weight |
60 to 120 gsm |
|
Workload |
48,000 pages per month |
|
Printhead / Printhead Life |
24-Pin / 500 million characters |
|
Memory |
128 kb |
|
Standard Connectivity |
Bi-directional parallel plus Ethernet 10/100BaseT with 128 kb buffer |
|
Optional Connectivity |
Twinax / Coax / IPDS, Ethernet IPDS, TN5250e/TN3270e, RS232 Serial Interface |
|
Standard Emulation |
IBM Proprinter, Epson LQ (ESC P/2), Genicom ANSI, MTPL + Barcode/LCP |
|
Optional Emulation |
MT660, Printronix, P6000, HP2564C |
|
Optional Graphics Emulation |
IGP/QMS Code V Magnum |
| Fonts |
HS Draft, Draft, Copy Draft, Courier, Roman, Sans Serif, Prestige, Script, Orator, Gothic, Souvenir, Kix/Royal, OCR A*, OCR B*, 22 Bar Codes & scalable LCP, Intelligent Mail Bar Code |
|
Consumables (Ribbon) |
20 million characters* |
|
Standard Paper Handling |
Push tractor with paper parking and Auto Gap Alignment (AGA) |
|
Optional Paper Handling |
2nd front tractor (user installable), paper pedestal, basket, cutting device |
| 4347-i08-2T Dual Tractor Model Shown with 2nd Front Push Tractor |
|
|
Physical Characteristics
Dimensions |
11 x 24.6 x 17 inches (HxWxD) |
|
Power Voltage |
AC 120V and 230V (selectable) |
|
Acoustics |
59dB(A) |
|
Warranty |
One Year ON-SITE next business day |
|
Datasheet |
|
|
*NOTE: For OCR applications it is recommended that your readers are tested with print samples supplied DASCOM prior to purchase. Paper is a highly variable medium and should be tested prior to purchase. The quoted consumable life is the average for the printer when used under normal operating conditions. |
|
