Printronix S809 Heavy Duty Multiform Printer
Up to 900 CPS Matrix Printer - Ethernet, USB, Parallel & Serial

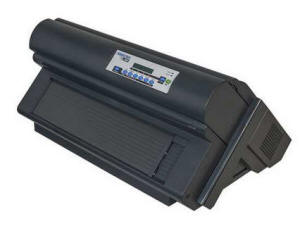

Printronix S809 Heavy Duty Desktop Multiform Printer

High reliability and broad functionality for demanding business environments. (Click on image of printer for detailed specifications)

Quick Tech Summary

  • Heavy Duty Matrix printer

  • Up to 900 cps to 10 cps

  • Lowest sound level of his class: 54 dBA

  • The longest life in its print head category, 800 million characters

  • Extended ribbon life: 25 million characters

  • Automated and configurable "zero-tear" (zero loss) management of forms requiring minimal user intervention

  • Powerful remote printer management function

  • Robust multilingual control panel

  • Optional second paper feed option

  • Standard Interfaces: Parallel, Serial, USB and Ethernet

  • Wide format: 136 columns

  • Robust 6-pin tractors for reliable routing of forms up to 8 sheets

  • Open pedestal (optional)


  • Fast, quiet, reliable printing at up to 900 characters per second1 on up to 8 part forms

  • Rugged design for superior durability in mission critical environments

  • Powerful remote printer management

  • Automatic forms loading and thickness adjustments

Fast and robust

The Printronix S809 Series dot matrix printer combines a print speed of 900 characters per second (at 10 cpi) with the best life in its class, outstanding printability and reliability to meet your printing needs. by minimizing the costs of ownership. In addition, the primary and secondary paper paths feature rugged 6-pin tractors that provide optimum reliability for routing single-sheet forms (up to 8), while longer ribbon life allows for superior performance. 25% to those of most equivalent competing products.


At 54 dBa, the S809 delivers the lowest sound level in its class. Quieter than 50% of its main competitors, it is unmatched in terms of noise emissions. The S809 printer is also easy to use thanks to a complete multilingual user interface and minimizes manual intervention thanks to automated and customizable forms management (automatic loading, ejection and restoration, storage and adaptation to the thickness of forms). In addition, its standard interfaces (Ethernet, USB, serial and parallel) allow it to be inserted in any environment. To facilitate the management of large printer fleets,

The NEW Printronix S809

Extremely reliable 24-pin dot matrix printer with excellent price / performance ratio,
designed to be the most robust, fastest and quietest in its class.

Click Here For More Information on the Printronix S809 Matrix Printer

Click here to download the Printronix S809 Printer Datasheet


Purchase On-Line

Click Here For More Information on the Printronix S809 Matrix Printer

Printronix S809 Multiform Printer Specifications



Max. Print Speed
S809 Print Speeds at: 10 cpi 12 cpi 15 cpi
High Speed Draft Mode: 900 cps

Draft mode (DP):

  800 cps

960 cps

1200 cps

Best Draft Mode:

  400 cps

480 cps

600 cps

NLQ Mode:

  267 cps

320 cps

400 cps

LQ Mode:

 133 cps

166 cps

200 cps

Print options

Maximum Print Line: 13.6"/345.44 mm

Vertical spacing:
6 or 8 lpi selectable from operator panel for text
3, 4, 6, 8 or 9 lpi selectable under program control for text
1/144" increments under program control available for graphics

Horizontal spacing:
10, 12, 15, 16.7, 17.1 and 20 cpi
10 cpi in Fast draft mode
Proportional spacing is available in DP text and NLQ mode

Bar codes:
Codabar, UPC-A, UPC-E, EAN-8, EAN-13, UPC/EAN ADD-ON 2 and 5, Code 2 of 5, Code39, Code128, Code11, Code93, CodeGP, CodeBCD, C25-3BAR, Postnet, MSI, Intelligent Mail barcode


Epson® ESC/P LQ Series / IBM® Proprinter XL24 / IBM Personal Printer 2391 / ANSI 3.64, S809 native commands

Drivers Win10 (32/64), Win8 (32/64), Win7 (32/64), WinServer2008 (32/64),
Win2003 (32/64), WinNT, 2000-WinXP, 98_ME, Vista
Paper handling

Support for two continuous forms paths

Dual front tractors

Paper parking, switching and linking

Automatic forms loading and thickness adjustment

Paper Sizes

Continuous forms: 3" to 17" (76 mm to 432 mm) width, 3" to 24" (76 mm to 610 mm) length


Centronics Parallel, Serial (RS-232C), USB 2.0, Ethernet 10/100 BaseT

Physical characteristics

28.4" x 15.7" x 13.8" (721 mm x 399 mm x 351 mm) (WxDxH),
72.6 lb./32.9 kg (weight)

Environmental conditions

Relative Humidity: 10% to 90% RH
Temperature: 50? to 105?F (10? to 40.6?C)
Acoustics Printing: 53.9 to 59.7 dBA depending on configuration


20 million character inked ribbon
