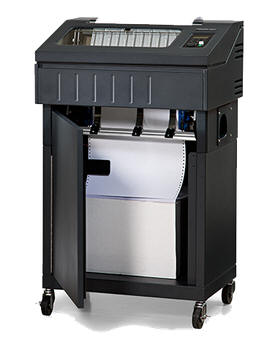

Printronix P8000 Zero Tear Line Printer

Highlights

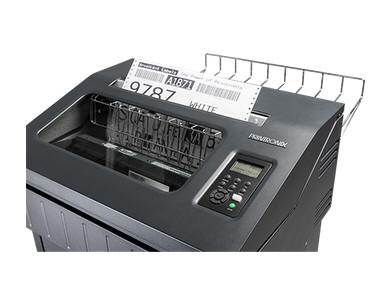

The Printronix P8000ZT Zero-Tear offerings are specialized cartridge line matrix printers designed for businesses using multi-part and serialized documents that require print on demand, single form tear-off usability. The Zero-Tear functionality allows users to eliminate forms waste and reduce operating costs. Through its unique tractor configuration, the ZT models push single or multi-part media through the hammer bank and eject it up to the tear bar upon job completion. Configurations and printing speeds ranging from 500 to 1,000 lines per minute

Flexible Design. Printronix modified its industry-leading line matrix technology to address evolving user requirements.

Sheet metal promotes increased durability and quieter acoustics

Adaptable Functionality. The P8000 Cartridge series adapts to almost any supply-chain or back-office

environment.

More models to fit your unique requirements including the enclosed pedestal, quiet cabinet and new tabletop model

Ethernet, USB 2.0 and Serial connectivity included as standard features. IPDS and Parallel available as options.

PowerPrint? delivers improved print clarity and print darkness on multi-part forms by increasing impact energy. PowerPrint is a standard feature on P8000 printers with a 1,000 line-per- minute print speed.

Manageable Savings. The P8000 Cartridge is a smart purchase.

New backward-compatible cartridge ribbon reduces inventory management cost and eliminates ordering and installation confusion

New remote diagnostics let you monitor functionality anywhere

New energy efficiency technology lowers idle power consumption and boosts operating efficiency

Specifications

Connectivity/Interfaces

Standard: Standard USB 2.0, Serial RS-232, Ethernet ? 10/100 Base T

Character Pitch (characters per inch)

10, 12, 13.3, 15, 16.7, 17.1, 20

Line Spacing (lines per inch)

6, 8, 10.3, n/72, n/216

Graphics Resolution

180 dpi Horizontal, 144 dpi Vertical (max)

Dot Size

16.7 mil (.42mm)

Emulations

Standard: LP+ (Printronix P-Series, P-Series XQ,Serial Matrix, IBM ProPrinter III XL,Epson FX-1050), ANSI, PCL 2, TN5250/TN3270, Graphics Emulation PGL & VGL
Optional: IPDS, DEC LG

Character Sets

99 plus character sets including ECMA Latin 1, DEC Multinational, IBM Code Page 437 and 850, OCR A, OCR B, UTF8 encoded Unicode

Character Styles

Bold, italic, double wide, double high, overstrike, underline, subscript and superscript

Fonts

NLQ Serif, NLQ Sans Serif, Data Processing, High Speed, OCR A, OCR B

Barcodes

30 resident symbologies, including Code 39, EAN 8/13, UPC A/E, Intelligent Mail, Postnet, Royal Mail, Interleaved 2 of 5, PDF 417, Data Matrix

Printer Software

Printronix PrintNet Enterprise remote management software, SAP device support

Printer Drivers

Microsoft Window XP/Vista/2003/2008/7, Linux

Power Voltage

AC input range 100-240 VAC, 50/60 HZ

Power Consumption (typical-maximum)

P8005 / P8205 280 watts Max 320 watts
P8010 / P8210 300 watts Max 320 watts

Power Consumption (Power-Saver Mode)

Less than 5 watts

Operating Temperature

Environmental Operating Temperature 50� to 104� F, 10� to 40� C

Paper Type

Continuous, fan folded, edge-perforation

Print Width

13.6″ (345mm)

Media Copies

Up to 6 part; up to 4 part for Zero Tear models

Media LENGTH

3" (76mm) to 12" (305mm)

Media THICKNESS MULTI-PART

0.025" (0.64mm) max

Media Width

3″ (76mm) to 17″ (432mm)
For Zero Tear models:
- 7.5" (191mm) to 12" (305mm) for up to 4 part carbon and 6 part carbonless
- 7.5" (191mm) to 16" (406mm) for up to 3 part carbon and 4 part carbonless

Media Weight Single Ply

15 lb. Bond to 100 lb. Tag (56 to 163 gm/M2)
For Zero Tear models:
- 18 lb. Bond to 100 lb. Tag (67.7 to 163 gm/M2) for forms up to 12? (305mm) in width
- 20 lb. Bond to 100 lb. Tag (75.2 to 163gm/M2) for forms up to 16? (406mm) in width

MTBF

10,000 hours at 25% duty cycle and 25% page density

Consumable/Ribbons

Standard Life Cartridge Ribbon: 17,000 pages
Extended Life Cartridge Ribbon: 30,000 pages (Only available for 1000-2000 lpm models)

Page yield based on ISO LSA Page, 8.5″ x 11″ letter-size, approximately 5% coverage

Height:

42.04" (1067.8 mm) with basket
42.04" (1067.8 mm) without basket

Width:

25.8″ (655.3 mm) with basket
25.8″ (655.3 mm) without basket

Depth:

31.9″ (810.2 mm) with basket
19.1? (485.1 mm) without basket

Printer Weight:

145 lbs (66 Kg) with basket
N/A without basket

Shipping Printer Weight:

190 lbs (86 Kg) with basket
N/A ? without basket

Acoustic Noise (dBA) per ISO 7779:

P8005ZT: 70
P8010ZT: 70
