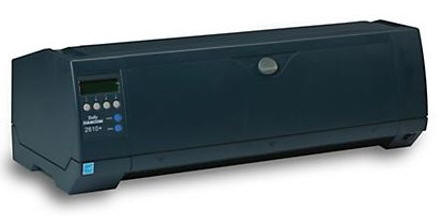

Tally - Dascom 2610+ Wide Carriage Matrix Printer
USB, Parallel, Ethernet and Serial (optional)

Multi-Part Form Matrix Printer for Demanding Office Applications




  • Plug and Play Replacement for Epson, Lexmark and OkiData Desktop Matrix Printers

  • Printer Emulations: Epson ESC/P2, IBM ProPrinter XL24, MTPL + Barcode + LCP

  • 24-wire Print Head

  • True Zero Tear for No Wasted Forms

  • Rated Duty Cycle up to 20,000 Pages per Month

  • Print Speeds up to 680 CPS

  • Parallel, USB, and Ethernet Interfaces Standard

  • Straight Through Paper Path for Easy Forms Loading

  • Wide Carriage (136-column)

Overview

If you're looking for a wide carriage printer at a value price that is both flexible and built for the daily grind, then look no further than the Tally-Dascom 2610.  A host of connectivity options including standard choices of either Ethernet, Parallel, or USB means you have built-in flexibility for your unique environment.  The TD2610 is also aesthetically appealing and at home in an office, computer room, or other environment.  Top it off with print speeds up to nearly 700 characters per second and a rated workload of 20,000 pages and you can see why the TD2610 is a lot of printer for the price.

Click here for more information on the Tally - Dascom  2610 Plus Printer

Click here for the Tally - Dascom  2610 Plus Printer Datasheet

Available Configurations

Model Number

Description

Tally - Dascom  2600 Plus

Narrow Carriage - 80 Column

Tally - Dascom  2610 Plus

Wide Carriage - 136 Column



Specifications

ITEM

2610+ Multiform Printer

Print Speeds at 10 cpi:

Fastest Draft
High Speed Draft

Draft Quality
Letter
Quality



- > 680 CPS
- > 500 CPS
- > 333 CPS
- > 111 CPS

Character Density

10, 12, 15, 17.1, 20 cpi (Emulation dependent)

Resolution

Up to 360 dpi x 360 dpi

Line Density

2, 3, 4, 6, 8, 12 lpi

Number of Copies

Up to 6 part forms (original plus 5 copies), 2 part forms for rear tractor of 4347-i11-2T model

Paper Type

Cut sheets, Continuous forms, multi-part forms

Paper Size

Width 2600+:  3 inch minimum to 11.0 inch maximum
Width 2610+:  3 inch minimum to 16.5 inch maximum
Length (both): 3 inch minimum to 23.6 inch maximum

Paper Weight

60 to 120 gsm

Standard Paper Handling

One tractor useable as Push (front or rear) or Pull (top) version, continuous paper with straight paper path and park position, cut sheet front insertion, tear or front off.

Optional Paper Handling
Number of Copies

Additional push tractor (rear)
Push tractor front - 1 original plus 5 copies
Pull tractor top - 1 original plus 5 copies
Cut sheet - 1 original plus 5 copies

Workload

20,000 pages per month

Printhead / PrintheadLife

24-Pin - 500 million characters

Memory

256 kb

Standard Connectivity

Parallel (Bi-directional), USB (2.0) plus Ethernet 10/100BaseT with 128 kb buffer

Optional Connectivity

RS232 Serial Interface
External Options for IBM Power, iSeries AS/400, zSeries S/390

Standard Emulation

IBM Proprinter, Epson LQ (ESC P/2), Genicom ANSI, MTPL + Barcode/LCP (Large Character Printing)

Fonts

HS Draft, Draft, Courier, Roman, Sans Serif, Prestige, Script,  OCR A/B*, 14 Bar Codes & scalable LCP (Large Character Printing), Intelligent Mail Bar Code

Consumables (Ribbon)

9 million characters*

Physical Characteristics

Dimensions

Weight



23.6 x 10.4 x 7.9 inches  (Width x Depth x Height)
600 x 265 x 200 mm  (Width x Depth x Height)
23.3 lbs / 10.6 kg

Power Voltage
Power Consumption

AC 100V to 240V  wide range auto-sensing
40 Watt Printing; less than 10 Watt Sleep Mode

Acoustics

52 dB(A)

MTBF

15,000 hours

Drivers

Windows 10/8/7/Vista/XP/2000 and Server 2008/2003; SAP

Warranty

One Year Return to Depot

Datasheet

Click on each model below for the
Tally - Dascom  2610+ Datasheet


Tally - Dascom  2600+ Datasheet


*NOTES:
For OCR applications it is recommended that your readers are tested with print samples supplied DASCOM prior to purchase. Paper is a highly variable medium and should be tested prior to purchase.
The
quoted consumable life is the average for the printer when used under normal operating conditions.
