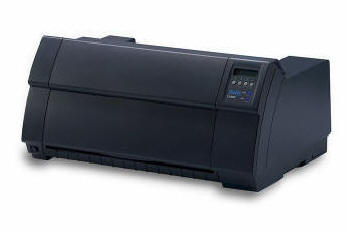

Tally - Dascom 4347-i Multiform Matrix Printer
Available with Twinax, Coax, Ethernet and IPDS Options

The Tally - Dascom  4347-i Series...  the perfect replacement for your old IBM 4224, 4230 or 4247 Twinax, Coax, IPDS and Ethernet Printers and the perfect Ethernet/IPDS addition to your IBM Power8 System i and Power9 System z.



  • Plug & Play replacement for all IBM Desktop Printers and even some Line Printers (and other compatibles)

  • Ethernet & USB Interfaces Standard

  • Optional Parallel/RS232 Serial Printer Interface

  • Optional Ethernet IPDS, Twinax, Twinax IPDS, Coax, Coax IPDS, Ethernet,
    TelNet (TN5250e and TN3270e
    )

  • Heavy Duty 24-Pin Printhead

  • 7 part forms on Tally - Dascom  4347-i09
    6 part forms on Tally - Dascom  4347-i11

  • IGP/QMS Graphics Available (Magnum Code V)

  • Compatible with IBM?, Windows and Unix systems and protocols

  • Standard 1 Year ON-SITE Warranty

  • Try-It & Buy-It Programs available

Click here for more information on the Tally - Dascom  4347-1 Series of Printers

Comparison - 4247-i09 & 4347-i11 Multi-form Printers

ITEM

4347-i09 Multiform Printer 4347-i11 Multiform Printer

Print Speed

High Speed Quality: 12 cpi
High Speed Quality: 10 cpi

Data Print
Quality: 10 cpi
Near Letter
Quality: 10 cpi



- > 960 CPS
- > 800 CPS
- > 667 CPS
-
> 222 CPS



- > 1200 CPS
- > 1000 CPS
- > 833 CPS
- > 278 CPS

Throughput

640 pages/hour - ECMA 132 at  10 cpi (approx.)

690 pages/hour - ECMA 132 at  10 cpi (approx.)

Character Density

5, 6, 7.5, 8.6, 10, 12, 15, 17.1, 20 cpi (Emulation dependent)

Line Density

2, 3, 4, 6, 8, 12 lpi

Number of Copies

Up to 7 part forms (1 original plus 6 copies), 2 part forms for rear tractor of 4347-i09-2T model

Up to 6 part forms (1 original plus 5 copies), 2 part forms for rear tractor of 4347-i11-2T model

Paper Type

Continuous forms

Continuous forms

Paper Size

Width:  3 inch minimum to 16.5 inch maximum
Length: 3 inch minimum to 22 inch maximum

Paper Weight

60 to 120 gsm

60 to 120 gsm

Workload

Up to 50,000 pages per month

Print head Life

500 million characters

750 million characters

Memory

128 kb

128 kb

Standard Connectivity

Ethernet 10/100BaseT and USB
with 128 kb buffer

Optional Connectivity

Parallel/Twinax / Coax / IPDS, Ethernet IPDS, TN5250e/TN3270e, RS232 Serial Interface

Standard Emulation

IBM Proprinter, Epson LQ (ESC P/2), Genicom ANSI, MTPL + Barcode/LCP

IGP Version: IGP/PGL, Code V, MT660, Printronix, P6000, HP2564C

Fonts

HS Draft, Draft, Copy Draft, Courier, Roman, Sans Serif, Prestige, Script, Orator, Gothic, Souvenir, Kix/Royal, OCR A*, OCR B*, 22 Bar Codes & scalable LCP, Intelligent Mail Bar Code

Optional Emulation

PCL3 (rugged writer)

PCL3 (rugged writer)

Consumables (Ribbon)

20 million characters*

20 million characters*

Standard Paper Handling

Push tractor with paper parking and Auto Gap Alignment (AGA)

Push tractor with paper parking and Auto Gap Alignment (AGA)

Standard Paper Handling

Push tractor with paper parking and Auto Gap Alignment (AGA)

Push tractor with paper parking and Auto Gap Alignment (AGA)

Optional Paper Handling

2nd front tractor (user installable), paper pedestal, basket, cutting device

2nd front tractor (user installable), paper pedestal, basket, cutting device

Physical Characteristics

Dimensions
Weight



11 x 24.6 x 17 inches (HxWxD)
Approximately 45.6 lbs



11 x 24.6 x 17 inches (HxWxD)
Approximately 45.6 lbs

Power Voltage

AC 120V and 230V (selectable)

AC 120V and 230V (selectable)

Acoustics

54 dB(A)

54 dB(A)

Warranty

One Year ON-SITE next business day

One Year ON-SITE next business day

Datasheet

Click here to go to the
4347-i09 Printer Page
Tally - Dascom  4347-i09 Datasheet

Click here to go to the
4347-i11 Printer Page
Tally - Dascom  4347-i11 Datasheet

*NOTE: For OCR applications it is recommended that your readers are tested with print samples supplied DASCOM prior to purchase. Paper is a highly variable medium and should be tested prior to purchase.  The quoted consumable life is the average for the printer when used under normal operating conditions.






Purchase On-Line - Call 800-597-2525 for Current Pricing


Information Request Form

Tally - Dascom  4347-i Matrix Printer


Tally 4347-i Series Matrix Printer Information Request Form



Have a salesperson contact me
Send product literature
Send company information
Immediate
30 Days
60 Days
90 Days

* Required

Tally 4347i Printer - New 121119

Click here for the Tally 4347-i09 Datasheet

Click here for the Tally 4347-i11 Datasheet






|
