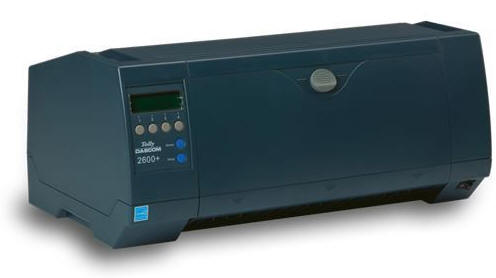

Multi-Part Form Matrix Printer for Demanding Office Applications

Plug and Play Replacement for Epson, Lexmark and OkiData Desktop Matrix Printers
Printer Emulations: Epson ESC/P2, IBM ProPrinter XL24, MTPL + Barcode + LCP
24-wire Print Head
True Zero Tear for No Wasted Forms
Rated Duty Cycle up to 20,000 Pages per Month
Print Speeds up to 680 CPS
Parallel, USB, and Ethernet Interfaces Standard
Straight Through Paper Path for Easy Forms Loading
Narrow Carriage and Wide Carriage models

Overview

If you're looking for desktop form printers, narrow carriage or wide carriage, at a value price that is both flexible and built for the daily grind, then look no further than the Tally-Dascom 2600 and 2610. A host of connectivity options including standard choices of either Ethernet, Parallel, or USB means you have built-in flexibility for your unique environment. The 2600 and 2610 are also aesthetically appealing and at home in an office, computer room, or other environment. Top it off with print speeds up to nearly 700 characters per second and a rated workload of 20,000 pages and you can see why the 2600 and 2610 are a lot printer for the price.

Click here to compare the 2600 Plus and 2610 Plus Printers.

Click here for more information on the Tally - Dascom 2600 Plus

Available Configurations

Model Number	Description
Tally - Dascom 2600 Plus	Narrow Carriage - 80 Column
Tally - Dascom 2610 Plus	Wide Carriage - 136 Column

Comparison - 2600 Plus and 2610 Plus Multi-form Printers

ITEM	2600+ Narrow Carriage	2610+ Wide Carriage
Print Speeds at 10 cpi: Fastest Draft High Speed Draft Draft Quality Letter Quality	- > 680 CPS - > 500 CPS - > 333 CPS - > 111 CPS
Character Density	10, 12, 15, 17.1, 20 cpi (Emulation dependent)
Resolution	Up to 360 dpi x 360 dpi
Line Density	2, 3, 4, 6, 8, 12 lpi
Number of Copies	Up to 6 part forms (original plus 5 copies), 2 part forms for rear tractor of 4347-i11-2T model
Paper Type	Cut sheets, Continuous forms, multi-part forms
Paper Size	Width: 3.0 inch minimum to 11.0 inch maximum Length: 3.0 inch minimum to 23.6 inch maximum	Width: 3.0 inch minimum to 16.5 inch maximum Length: 3.0 inch minimum to 23.6 inch maximum
Paper Weight	60 to 120 gsm
Standard Paper Handling	One tractor useable as Push (front or rear) or Pull (top) version, continuous paper with straight paper path and park position, cut sheet front insertion, tear or front off.
Optional Paper Handling Number of Copies	Additional push tractor (rear) Push tractor front - 1 original plus 5 copies Pull tractor top - 1 original plus 5 copies Cut sheet - 1 original plus 5 copies
Workload	20,000 pages per month
Printhead / PrintheadLife	24-Pin - 500 million characters
Memory	256 kb

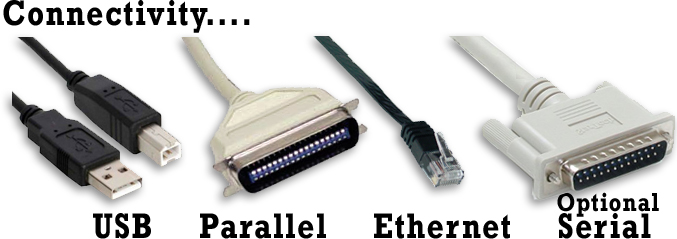

Standard Connectivity	Parallel (Bi-directional), USB (2.0) plus Ethernet 10/100BaseT with 128 kb buffer
Optional Connectivity	RS232 Serial Interface External Options for IBM Power, iSeries AS/400, zSeries S/390
Standard Emulation	IBM Proprinter, Epson LQ (ESC P/2), Genicom ANSI, MTPL + Barcode/LCP (Large Character Printing)
Fonts	HS Draft, Draft, Courier, Roman, Sans Serif, Prestige, Script, OCR A/B*, 14 Bar Codes & scalable LCP (Large Character Printing), Intelligent Mail Bar Code
Consumables (Ribbon)	9 million characters*
Physical Characteristics Dimensions Weight	23.6 x 10.4 x 7.9 inches (Width x Depth x Height) 600 x 265 x 200 mm (Width x Depth x Height) 23.3 lbs / 10.6 kg	23.6 x 10.4 x 7.9 inches (Width x Depth x Height) 600 x 265 x 200 mm (Width x Depth x Height) 23.3 lbs / 10.6 kg
Power Voltage Power Consumption	AC 100V to 240V wide range auto-sensing 40 Watt Printing; less than 10 Watt Sleep Mode
Acoustics	52 dB(A)
MTBF	15,000 hours
Drivers	Windows 10/8/7/Vista/XP/2000 and Server 2008/2003; SAP
Warranty	One Year Return to Depot
Datasheet	Click on each model below for the Tally - Dascom 2610+ Datasheet Tally - Dascom 2600+ Datasheet
*NOTES: For OCR applications it is recommended that your readers are tested with print samples supplied DASCOM prior to purchase. Paper is a highly variable medium and should be tested prior to purchase. The quoted consumable life is the average for the printer when used under normal operating conditions.

Purchase On-Line

Information Request Form

Tally - Dascom 2600 Plus and 2610 Plus Matrix Printer

Tally 2600/2610 Matrix Printer Information Request Form

Select the items that apply, and then let us know how to contact you. *

Have a salesperson contact me
Send product literature
Send company information

My Need is: *

Immediate
30 Days
60 Days
90 Days

I'm Interested in: *

Type of Host System (iSeries, zSeries, Etc.) *

Name *

E-mail Address: *

Company Name *

Telephone Number *

Telephone Extension

Address 1

Address 2

City:

State/Province

Postal / Zip Code

Country

Fax Number

Message

How Did You Hear About This Product?

* Required

Tally 4347i Printer - New 121119

Click here for the Tally 2600 Plus Datasheet

Click here for the Tally 2610 Plus Datasheet
