A Network Appliance to Connect
Laser Printers, Copiers, and MFPs to
IBM iSeries AS/400s & zSeries S/390 Systems and Provide Full Support for IPDS Printing

Overview

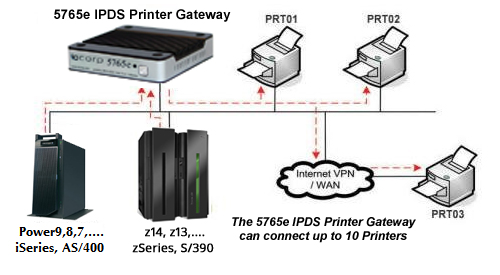

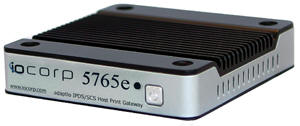

The I-O Corporation 5765e IPDS/SCS Printer Gateway is a high speed Ethernet-in, Ethernet-out IPDS/SCS gateway print server designed to convert native IBM host print jobs to PCL, allowing them to be printed to network attached Laser Printers, Copiers and MFPs The 5765e Print Server Gateway can be initially ordered with support from 1 to 10 printers, and delivers IBM IPDS and SCS printing via TCP/IP, providing the control and printer feedback found in an IBM host environment.  When additional printer support is needed, it is simply upgraded via a new license code.

*NOTE:  Printers must be capable of supporting PCL5e or higher.

Features

• Connects from 1 to 10 PCL 5e (or higher) compatible Ethernet capable laser printers or MFP devices

• Supports Advanced Function Printing (AFP) using IPDS protocol

• Also supports standard Host printing using SCS protocol

• High speed printing - Supports printers with up to 250 pages/minute per printer

• Supports over 100 IPDS Fonts

• 10 / 100 Mbps Ethernet LAN, auto sensing

• Multiple Host support (Power9, Power8 and all iSeries AS/400, and z14, z13 and all zSeries S/390)

• Host printing via Telnet (TN5250e and TN3270E) and TCP/IP (PPR/PPD)

• Simple, one step set-up (auto configuration) when using TN5250e or TN3270e

• Host controlled printing, including error reporting, page range printing etc.

• I-O's award winning IBM IPDS and SCS printer emulations

• Increases print speeds

• Easy to install and use, includes I-O's Configuration Utility software

High Speed Printing

Attached to a network, the 5765e supports high-speed, high performance PCL compatible network attached printers. It supports printing up to 250 pages/min per printer. Whether printing from an IBM Power System (System i, iSeries, AS/400) or a zSeries - S/390, fast printing can be obtained with laser printers supporting port 9100. In addition to the Ethernet gateway connection, the adaptio Gateway will also support one locally attached USB printer.

Full Printing Control from IBM Host

The 5765e offers the same reliable, full-function IBM host printing and control found with traditional direct attached Twinax/Coax printers. With the Adaptio Gateway, IBM host print jobs are not lost in the black hole of "Remote Out Queue" LAN printing. The Adaptio Gateway provides bi-directional communication between the printer and the IBM host, allowing error reporting and page range printing.

Easy to Use

I-O's Configuration Utility software is included with every 5765e. Configuration is made easy through the use of a menu-based utility.

Click here for more information on the 5765e Print Server Gateway

Purchase On-Line

Technical Specifications

Plus a wide range of additional features that boost productivity and performance.
