 An Advanced Thin Client
Terminal for
All Desktop Environments
as Well As Your IBM Power Systems over TCP/IP
PLEASE NOTE: The ST6500 and ST6560 have been discontinued. It
may be available as a refurbished product on an "as
available" basis. The
current
replacement product
for the ST6500 is the AG7000 Thin Client Terminal.
If a Centronics Parllalel Printer Port is needed, the
IA8600 Thin Client Terminal is the
alternative product.
Overview
The ST6500 - A Flexible, DUAL Video
ready, high performance terminal that can be
configured with Microsoft Windows Embedded
Standard (WES) operating system,
Microsoft CE.NET 6, or Linux.
You can see the features provided by
each of the Operating System choices in the
Software Specifications
below.
Featured Highlights
-
Integrated VGA and DVI video ports ? no video
splitter
cable needed
-
Mid-range
CPU provides hardware flexibility with an efficient price point
-
Optional integrated 802.11 b/g wireless adapter
-
Zero footprint / VESA compatible or vertical mounting
options
-
Flexibility to embed customer
selected Windows Apps
-
Industry-standard Microsoft Windows
Embedded Standard (WES), XP Embedded SP2
FR1 (XPe), Windows CE.NET 6,
or Embedded Linux (coming soon)
-
Enhanced video including high
resolution wide-screen monitor support
-
CLI SNMP Administrator Management
software is included with every unit. Rapidly deploy, configure,
provision and maintain all models of CLI thin clients, wired or
wireless.
-

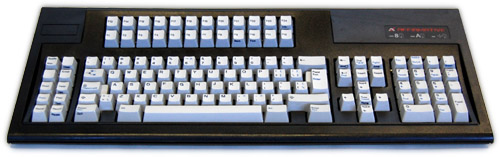

Optional 122-key Keyboard to provide "no
re-training" required migration to Ethernet connectivity from legacy "green screen" Twinax and Coax Terminals.
Click on the image above for a larger picture of
the 122-Key Keyboard
Click here for more information on the CLI ST
Series of Thin ClientTerminal
Productivity
User productivity is enhanced by eliminating any learning curve and costs associated
with PC products. Centralized management of individual units better utilizes
support and help desk assets.
Cost
Savings
Eliminates 5x94 remote controllers by using an
inexpensive network router. You can also eliminate your SNA WAN and use TCP/IP thereby
reducing communication costs. Plus, no per seat license cost.
As with all of CLI's Thin client
Terminals and
Modular Twinax Display Stations, you select from a wide array of keyboard and monitor styles for individual
application or user requirements. Whether you need a compact
terminal with a 9" monitor and compact keyboard, or a large
screen LCD model, CLI can provide the proper terminal for your
particular requirement.
Click here for more information on the CLI ST
Series of Thin ClientTerminal
Download the
Computer
Lab International (CLI) ST6500 Datasheet
|
|
|
Model |
ST6500X/ST6560X |
ST6500h/ST6560H |
ST6500T |
|
Flash Memory |
1GB Standard expandable to 2GB |
128MB, expandable to 2GB |
128MB, expandable to 2GB
|
|
DRAM |
1GB Standard |
256MB, expandable to 1GB |
256MB, expandable to 1GB |
|
Network |
Auto sense 10/100/1000BaseT twisted pair Ethernet, RJ
45 connector, Wake On LAN
Optional Integrated 802.11 b/g Wireless (ST6560X
and 6560H))
|
|
I/O Ports |
One serial DB9 RS 232C up to 115.2K baud
One parallel
DB 25 Centronics / C compatible
4 Type A USB 2.0
Two PS/2
- keyboard / mouse |
|
Video
|
One Integrated DVI port
& One Integrated VGA port
Resolution up to 1900 x 1200 including
wort
wide screen support
Up to 85Hz refresh rate, flicker free
32MB to 128MB (shared RAM) AGp 8x Performance
Up to 32 bit color (16.7 million colors
+ Alpha channel) |
|
Audio
|
Full 16 bit stereo FM synthesis, stereo line out, 8 bit
mini microphone line in
|
|
Physical
Specifications |
Dimensions: 1.4 in / 3.5cm (W) x 5.6 in / 14.2cm (D) x
8 in / 20.5cm (H)
Weight: 1.4 lb
VESA 100 compliant mounting holes (monitor mounting kit included
Built in Kensington Security slot (cable not included)
Optional monitor arm or wall mount adapter
Metal shielded ASB plastic enclosure
|
|
Environment
|
Operating temperature: 0° C to 40° C (32° F to 104°
F), Storage temperature: 40° C to 60° C ( 41° F to
140° F) Relative humidity: 20% to 80% non condensing
Power requirements: 100 240 VAC, 50/60 Hz
Convection cooling, no fan
|
|
Regulatory Compliance
|
FCC Class B, ROHS,
CE Mark, UL, T?
|
| |
|
|
|
|
|
|
Model |
ST6500X/ST6560X |
ST6500h/ST6560H |
ST6500T
|
|
LocalOperating
System |
- Microsoft Windows Embedded Standard
(WES)
XPe abailable
|
|
|
|
RDP |
|
|
|
ICA
|
- Citrix ICA 10, including PN,
PNA, and web interface
with full XP API
support
|
- Citrix ICA 10, Including
Program
Neighborhood Agent (PNA) and speed screen
ICA
|
- Citrix ICA 9, including Program
Neighborhood Agent (PNA) and speed screen
ICA
|
|
Terminal
Emulations |
- IBM TN5250e, TN3270e, 3151
- DEC 100/220/320/420
- ANSI BBS, SCO Console
- Wyse WY50/60, XDMCP optional SSH/SSL
available
|
Web Browser
|
- Internet Explorer 6 (IE7 also available)
including Flash and Shockwave playback,
PDF file viewer, MSJVM, Windows Media
Player, full plugin
and Active X support
|
- Windows CE Internet Explorer 6 Web
Browser , including DHTML,
P3P,
pop-up
window blocker, and
locked-down kiosk
mode
|
- Firefox 2, including pop popup blocker,
increased privacy and security, Flash
playback, Adobe PDF viewer, Real Kiosk, Sun
JRE/JVM
|
|
Email Client
|
- Via local browser or Outlook Express
|
|
|
Other Features
|
- Thin Print available via
download
- Supports optional Castles Technology EZ100 smart card reader via USB
or serial
- Special builds available via download (i.e.
Kiosk, .Net, IE7 and others)
- VNC
- Elo and Microtouch touch screen support
- Integrated 802.11 b/g wireless (ST6560)
- XDMC
|
Enhanced printing
capability |
- Windows X printer support ? all features
supported
- User installable printer drivers
- LPD/LPR
|
- AS400 / iSeries
/ 5250, Mainframe/3270
- Compatibility with many barcode printers
- Universal printer support via local LPD
client and host LPR
- SerialD w/ network to serial port redirection
|
- AS400/iSeries/5250, Mainframe/3270
- Compatibility with many barcode printers
- Universal printer support via local LPD client
and host LPR
- Network (TCP/IP) print server
|
|
Security |
- Multiple levels of security including user
lock-out and multiple built-in user Shell environments
|
Remote
Configuration
/
Management |
- DHCP , SNMP, FTP,
HTTP
- CLI SNMP Administrator software,
including configuration and image updates,
shadowing, asset management, automatic
patch support
|
- DHCP , SNMP , FTP
- CLI SNMP Administrator software,
including configuration and image
updates, shadowing, asset management,
registry edit, Eboot for flash disaster
recovery
|
- DHCP , SNMP , FTP
- CLI SNMP Administrator software,
configuration and image updates,
shadowing, asset management
|
Server Operating System Compatibility
/ Support
|
- Microsoft Windows Server 2008, 2003, 2000, Windows NT
4.0, Terminal Server Edition; Terminal Services
- Citrix? Application Delivery Infrastructure including XenApp and
XenDesktop, Access Suite?, MetaFrame?, WinFrame?
- Virtual Desktop Infrastructure (VDI) support: vmware VDM*,
Provision VAS*, Ericom WebConnect* and others
via browser and JVM (* all clients not supported on all platforms)
- UNIX, Linux, IBM OS/400, i5/OS, OS/390, z/OS
- Microsoft Windows Server 2008, 2003, 2000, Windows NT 4.0, Terminal
Server Edition; Terminal Services
- UNIX, Linux, IBM OS/400, i5/OS, OS/390, z/OS
|
|
Languages |
- English (US), Spanish (MX), Italian, French, Canadian
French, Chinese, Austrian / German, Scandinavian, Spanish, Japanese /
Kana, Korean
|
|
Network File Transfer Protocols |
- TCP / and UDP
, all XP supported protocols
- PXE
|
Download the
Computer
Lab International (CLI) ST6500 Datasheet
