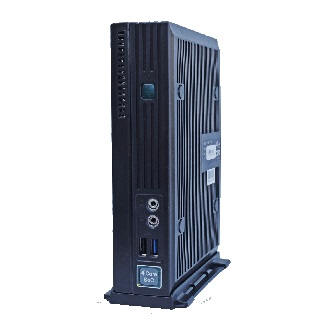

   IA8600 Thin Client Terminal
Intel Celeron J1900 Quad Core 2Ghz / 2.4Ghz (Burst) Processor

An Advanced Thin Client Terminal for All Desktop Environments as Well As for Your IBM Power Systems over TCP/IP

Overview

The IA8600 Series offers technology without compromise with exceptional functionality for your multimedia, CAD and other computing intensive applications. Designed for VDI connection to Citrix, VMware?, Microsoft?, and Cloud Servers, while providing the inherent reliable security of thin client terminals.

The IA8600 is CLI's powerhouse desktop solution. If you're looking for superior functionality, flexibility and security, the IA8600 is the device you need. With the IntelQuad Core mobile processor, this client is a fantastic fit providing maximum compatibility with it's processing engine to support the most demanding applications. The IA8600 includes legacy ports to support multiple peripherals coupled with a Display Port and a DVI digital video port to provide enhanced viewing experience along with enterprise class internal wireless, making connectivity and remote management effortless. CLI's Device Manager software completes the package delivering superior remote management capabilities.

Users demand high performance from their desktop and CLI's IA8600 will meet the requirement. If you have specialized peripherals, multimedia or graphic intensive applications, the CLI IA8600 will deliver the computing power needed for demanding environments. This thin client is built to perform. IntelQuad Core Baytrail SOC Processor; Multimedia, CAD and other graphics support; Legacy ports; Optional wireless; Remote management.

Wireless Model Number

Operating System

IA8660LX64

Linux 64-Bit

IA8660W10

Windows 10 IoT

If you are looking for an Ethernet "Dumb Terminal" with a Parallel Port, the IA8600 can be configured to act as a "Dumb Ethernet Terminal" just like the ET2000.  They can be configured to automatically boot up to a 5250 or 3270 sign-on screen.

You can see this in the CLI YouTube Video "5250 Autostart MT2301" at the link directly below:

https://www.youtube.com/watch?feature=player_detailpage&v=x8u3ZL4DG5s

This video applies to all CLI Thin Client Terminals.  There will be slight differences in the exact setup based on what operating system is being used on the IA8600.

Featured Highlights

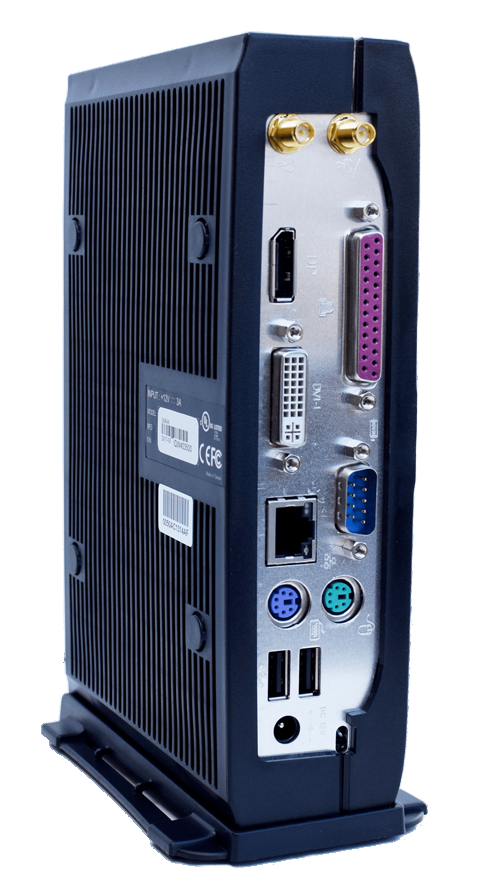

  • Dual Monitor Support - Integrated Display Port and DVI-I video ports (VGA Adapter Included) no video splitter cable needed

  • Full Array of  Legacy Ports - 1 Parallel, 2 PS/2, 1 Serial, 4 USB

  • Optional Integrated wireless 802.11b/g/n Wi-FiTM

  • Zero footprint / VESA compatible or vertical mounting options

  • Flexibility to embed customer selected Windows Apps

  • Terminal Emulation - TN5250e (iSeries AS/400), TN3270e (IBM Mainframe), ASCII (Unix,Linux)

  • Industry-standard Microsoft Windows 10 IoT (Win10),  Linux 64-bit and Linux 32-bit

  • App Store for CLI Linux OS - Update apps and add others such as Chrome, Firefox, Libre Office and many others

  • Enhanced video including high resolution wide-screen monitor support

  • CLI SNMP Administrator Management software is included with every unit. Rapidly deploy, configure, provision and maintain all models of CLI thin clients, wired or wireless.

  • Optional 122-key Keyboard to provide "no re-training" required migration to Ethernet connectivity from legacy "green screen" Twinax and Coax Terminals.


    Click on the image above for a larger picture of the 122-Key Keyboard

Click here for more information on the IA8600 Thin ClientTerminal

Productivity

User productivity is enhanced by eliminating any learning curve and costs associated with PC products. Centralized management of individual units better utilizes support and help desk assets.

Cost Savings

Eliminates 5x94 remote controllers by using an inexpensive network router. You can also eliminate your SNA WAN and use TCP/IP thereby reducing communication costs. Plus, no per seat license cost.

As with all of CLI's Thin client Terminals and Modular Twinax Display Stations, you select from a wide array of keyboard and monitor styles for individual application or user requirements.

Click here for more information on the IA8600 Thin ClientTerminal

For Complete Specifications Download the IA8600 Datasheet


IA8600 / IA8660 Hardware Specifications

Model

IA8600

IA8600LX64

IA8600L

Operating System

Win10 IoT

Linux 64-Bit

Linux LX3 32-Bit

Processor

Intel Celeron J1900 Quad Core 2Ghz / 2.4Ghz (Burst), 2mb L2 Cache

Memory (min/max)

8gb

4gb

2gb / 4gb

Flash (Storage)

(min/max)

32gb / 512gb

16gb / 512gb

16gb / 512gb

Network

Auto sense 10/100/1000 BaseT twisted pair Ethernet, RJ 45 connector, Wake On LAN

Wireless (Optional)
802.11b/g/n Wi-Fi

Model IA8660W10

Model IA8660LX64

Model IA8660L

I/O Ports

1 Parallel Port, 1 Serial Port (DB9 RS 232C), 4 USB 2.0 Ports, 2 PS/2 Ports (one for Keyboard, one for Mouse), 1 Mic-in jack, 1 Audio Out Jack, 1 RJ45 Ethernet

Video

VX855-based Chrome9 HCM 3D graphics core
High Definition video processor with VMR capability

Audio

Output: Full 16 bit stereo FM synthesis, stereo line out,
Input: 8 bit Stereo Microphone in , 2 Audio Jacks
Lin-Out plus Internal Speaker, Microphone In

Physical Specifications

Dimensions: 1.9 in (W) x 5.3 in (D) x 7.88 (H)
Weight: 1.9 lb
VESA 100 compliant mounting holes (monitor mounting kit included)
Built in Kensington Security slot (cable not included)
Optional monitor arm or wall mount adapter
Metal shielded ASB plastic enclosure

Environment

Operating temperature: 0° C to 40° C (32° F to 104° F), Storage temperature: 40° C to 60° C ( 41° F to 140° F

Relative humidity: 20% to 80% non condensing

Power requirements: 100 240 VAC, 50/60 Hz

Convection cooling, no fan

Regulatory Compliance

FCC Class B, ROHS, UL, CE




For Complete Specifications Download the IA8600 Datasheet



IA8600 / IA8660 Software Specifications

Model

IA8600W10

IA8600LX64

IA8600L

Operating System

Windows 10 IoT

Linux 64-Bit

Linux 32-Bit

Protocols

Microsoft RDC / RemoteFX?, Citrix ICA/HDX?, VMware Horizon View?, Web Browser, Telnet, TCP/IP with DNS, DHCP, PPP and PXE

Terminal Emulations

IBM TN5250e, TN3270e, 3151, DEC 100/220/320/420,
ANSI BBS, SCO Console
Wyse WY50/60, XDMCP optional SSH/SSL available

Enhanced printing
capability

Windows X printer
  support all

features  supported

User installable
  printer drivers

LPD/LPR

AS400/iSeries /5250,
  Mainframe/3270

Compatibility with
  many barcode
  printers

Universal printer

support via local
  LPD client and host
  LPR

SerialD w/ network
  to serial port

redirection

AS400/iSeries/5250,
 Mainframe/3270

Compatibility with
  most barcode
  printers

Universal printer
  support via local

  LPD client and host
  LPR

Network (TCP/IP)
  print server

Security

Multiple levels of security including user lock-out and multiple built-in user Shell environments

Remote  Configuration /
Management

CLI Device Mangager:  Remote Configuration, Image updates, Asset Management, Shadowing

Languages

English (US), Spanish (MX), Italian, French, Canadian French, Chinese, Austrian / German, Scandinavian, Spanish, Japanese / Kana, Korean

Network File Transfer Protocols

TCP / and UDP , all XP supported protocols

PXE
