Axis 5570e - TCP/IP Print Servers
for AFP /
IPDS / SCS Printing from
IBM iSeries AS/400 and zSeries S/390 Host Systems |
 |
|

 |
 Axis AFP / IPDS / SCS Print Servers
PLEASE NOTE:
All models of Axis IPDS Print Servers have been discontinued and are
no longer manufactured. We
have these available as refurbished units.
The current replacement
for the 5570e model is the
I-O Corporation 5765e
iSeries/zSeries IPDS Print Server Gateway .
Please click here to be
taken to the 5765e Print Server Gateway page.
Overview
The

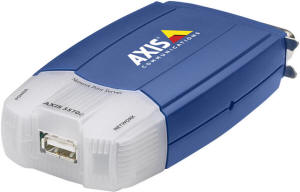

AXIS 5570e (P/N 0193-044), a host-to-LAN print server, enables organizations with
IBM Mainframe (zSeries) or IBM AS/400 (iSeries) to print to any printer or
digital copier, including those with USB ports.
The AXIS 5570e, with built-in IBM protocol converters, is
equipped with one USB and one parallel port, which enable printing to two
printers simultaneously.
The AXIS 5570e is the first multi-session USB print server
for the IBM environment.
The AXIS 5570e, a host-to-LAN print server, enables organizations with
IBM Mainframe (zSeries) or IBM AS/400 (iSeries) to print to any printer* or
digital copier, including those with USB ports.
The AXIS 5570e, with built-in IBM protocol converters, is equipped with
one USB and one parallel port, which enable printing to two printers
simultaneously. The AXIS 5570e is the first multi-session USB print server
for the IBM environment.
The AXIS 5570e provides support for all popular protocols and operating
systems such as Windows, NetWare, Macintosh, UNIX and Linux, in addition to
IBM host system printing over TCP/IP and SNA networks. The same printer can
therefore be used for print jobs coming from the IBM host as well as Windows
and other operating systems.
The AXIS 5570e features an improved installation wizard for IBM printing,
increased remote management security using TLS/SSL (HTTPS) and enhanced
print management in AXIS ThinWizard 3.00.
The AXIS 5570e provides a flexible, reliable and cost- effective network
printing solution for IBM host environments. There is no need for
application changes, host-based conversion software or intermediate servers.
The AXIS 5570e helps free the host system's resources for more critical
tasks, thereby improving the overall throughput of the IBM system.
Features
-
Future-proof pocket print server supporting both
parallel and USB printers
-
Easy installation: installation wizard for IBM printing,
AXIS AddPrinter for Windows, support for Bonjour in MacOS environments
-
Enhanced configuration and control: support for HTTPS
and SNMPv3, AXIS ThinWizard management software
-
Multilingual support: User's Guide and internal Web
pages available in English, German, Spanish, French, Italian and and
Japanese
-
Multiprotocol support: Use the same printer for print
jobs from the IBM host as for print jobs from Windows, NetWare, MacOS,
Linux and Unix.
The AXIS 5570e is the successor to the successful AXIS
5470e, which is installed in tens of thousands of units worldwide. This
model supports all the AXIS 5470e features and many more.
|
