Twinax Display Stations for the IBM i5, iSeries, AS/400 & System/36 Environment

PLEASE NOTE:  The Decision Data IS486, IS488 and LM488c are discontinued models and have not been manufactured for several years.

The direct replacements for the IS486, IS488 and LM488C are the CLI 5476 and CLI 5488 Modular Twinax Workstations.  Click here or on the links for each to be taken to their respective pages.

• CLI 5476, 5477 & 5488 Modular Color Twinax Terminals

• IBM 3488 Modular Color Twinax Terminal

• Replacement Keyboards for Decision Data Terminals

Overview

Decision Data’s IS488 and LM488C family of IBM InfoWindow AS/400 compatible (Twinax) workstations are designed for high performance at a low cost. In addition to increased productivity and ease of use, modular designs provides investment protection.

Decision Data 5250-compatible Twinax displays support both local attachment to IBM AS/400 and 36/38 systems and remote attachment via IBM 5294, 5394 or 5494 and compatible controllers. Local or remote attachment is available via Twinax cable or twisted pair cable with baluns.  Click here for 3270 Coax Display Stations.

Highlights:

• Plug compatible with IBM Twinax Displays

• Monochrome and Color Models Available

• Optional 122-Keyboards with 24 Command Keys

• Low cost, high performance

• Migration paths for investment protection

• Password security

• Multiple display, plus printer sessions

• Host or local printing, parallel ports for low cost printers

• Superior ergonomics, enhanced mouse support

• Bar code & data collection options

Advantages and Features

Monochrome and Color Models

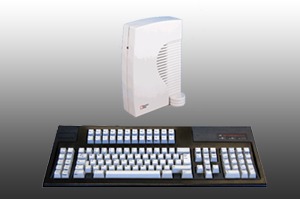

Two Twinax models are available - the Model LM-488C, a Logic Module with keyboard that supports any SVGA color monitor and the Model IS-488, for monochrome display (green, amber, paper white)..

Superior ergonomic design

Decision Data display units are easy to use, with high quality evident in its physical design, performance and user productivity.

Monochrome workstations consist of a 14-inch high resolution monitor of a non-glare screen available in green, amber or paper white. The products feature a small footprint, tilt and swivel movement, and support a slim-profile 122-key keyboard.

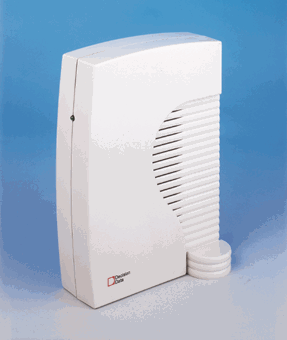

Color display logic modules are light and compact, hosting a slim connectivity card to provide space advantage. Units can be easily attached to a SVGA monitor and a 122-key or a PC keyboard to preserve customer's investment.

Efficient multiple and split screen display

Workstation efficiency gets a boost with Decision Data displays. All models have multiple display sessions and one printer session. The units also supports split-screen, simultaneous display of a reference screen with the active screen. The user can paste data from the active screen to the reference screen, where it can be saved or cleared for future reference, or pasted to other applications.

Versatile printing capabilities

The integrated parallel port enables a low-cost printer to be attached directly to DisplayWindow II workstations, for both host-addressable and local printing. You can select one of several pre-defined printer configurations, including Epson, HP LaserJet, and IBM. Or, use the Printer Definition Utility (PDU) to configure a user-defined printer. The PDU enables the user to change ASCII translation tables and add or delete printer commands.

Enhanced productivity tools
