Fourth-Generation Thin Client Terminals
Packed with Big Features in a Small Footprint

PLEASE NOTE:  The YEStation Mini Model 2252 Thin Client Terminal is no longer manufactured but are   available as a refurbished product. The current replacement product is the CLI AG7000 Thin Client Terminal.  If a Centronics Parallel Printer Port is needed, the CLI IA8600 Thin Client Terminal is the alternative product.

Overview

The new YEStation Mini Model 2252 has raised the bar for performance, while lowering the desktop space requirement. Built around an Intel?-compatible AMD466 processor that runs the Windows? CE.NET 6 operating system.

The YEStation Mini has a very small footprint - only 7.75" by 6" by 1.5" - and can be mounted vertically on a wall or attached to a monitor. The unit weighs only 1.5 pounds allowing for optimal mounting options, and low shipping costs.

The YEStation Mini Model 2252 provides a complete Terminal Emulation Suite including TN5250e, TN3270e, as well as others such as SCO-UNIX, ANSI, and various Wyse Terminal Emulations. ICA and RDP clients for connections to Windows Terminal Services and Citrix servers as well as an embedded Internet Explorer browser for access to Web-enabled applications, including email.

The 122-key keyboard provides a seamless transition from Twinax "dumb terminals" from IBM, CLI, Decision Data, Idea, Memorex, Praim and any other Twinax Terminal.

When moving from the 122-key layout to a standard PC keyboard, there are up to 36 new key combinations to be learned to perform the same tasks performed with a single keystroke on the Twinax terminal.  This lack of familiarity can produce a big loss in production and excess errors that would not be occurring if the user had their old, familiar keyboard.

With the Affirmative YEStation 2252 and 122-key keyboard, there is virtually no retraining when moving users from the old Twinax terminals to this now Ethernet connected terminal.

The only difference to the user is that their terminal is now connected over Ethernet instead of Twinax.  They will have the same layout and heavy duty keystroke feel as on the terminals being replaced.  No need to learn the new key combinations a standard PC keyboard would require.

The YEStation Mini?s advanced technology provides the best price/performance in the industry. Backed by Affirmative?s superior technical support and six years of thin client experience with AS/400 and iSeries users, the YEStation Mini is an ideal enterprise-wide solution.

Mounting options include vertical or horizontal orientations and LCD monitor integration with VESA Mounting Option..

Click here for more information on the YEStation Mini Thin Client Terminal

Technical Specifications

Item	Feature / Description
Processor	AMD 466

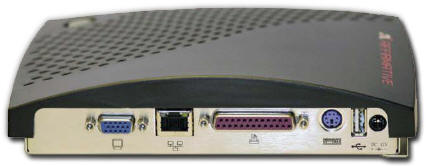

Input / Output connector support	10/100/1000 Ethernet, Twisted Pair (RJ45) One parallel port (DB-25 Female connector) One PS/2 keyboard port Two USB ports (front)
Operating Systems	Microsoft Windows CE.NET 6
Display Resolution & Colors	Supports Resolutions up to 1600x1200 with high color (16 bits) Flicker free, up to 85 Hz
Memory Support	RAM -- 128 MB Flash memory: DOC 256MB
Environment	Temperature	Operating : 5? C to 40? C (41? F to 104? F) Storage : -40? C to 60? C (-4? F to 140? F)
	Relative Humidity	90% maximum, non-condensing
	Operating Altitude Range	0 to 10,000 feet (0 to 3050 meters)
	Power	Full range auto-sensing 100 ~ 240 VAC at 50 Hz ~ 60 Hz; 10 Watts
Regulatory Compliance	UL, C-UL, TUV; FCC Class B; CE mark
Physical Characteristics	7.75 x 6.0 x 1.00 (Inches); Weight: 1.5 Pounds



Purchase On Line

Item Number	DESCRIPTION	PURCHASE
AFR2252	Affirmative YEStation Mini 2252 Thin Client Terminal (no keyboard or monitor) ( Affirmative Part No.: 2252 ) 3-Year Affirmative Warranty	Call 800-597-2525 For Pricing
AFR3501 (2252 with 1045T keyboard)	Affirmative YEStation Mini 2252 Thin Client Terminal with 104-Key Keyboard (no monitor) ( Affirmative Part No.: 3501 ) 3-Year Affirmative Warranty on 2252 and Keyboard	Call for 800-597-2525 Availability
AFR3501LCD17 (2252 with 1045T keyboard  and Acer 17 Inch LCD/LED Monitor)	Affirmative YEStation Mini 2252 Thin Client Terminal with 104-Key (12-command key) Keyboard and Acer 17 Inch LCD/LED Monitor ( Affirmative Part No.: 3501 plus LCD17 ) 3-Year Affirmative Warranty on 2252 and Keyboard 3-Year Acer Warranty on Monitor	Call for 800-597-2525 Availability
AFR3502 (2252 with 1225T keyboard)	Affirmative YEStation Mini 2252 Thin Client Terminal with 122-Key Keyboard (no monitor) ( Affirmative Part No.: 3502 ) 3-Year Affirmative Warranty on 2252 and Keyboard	Call for 800-597-2525 Availability
AFR3502LCD17 (2252 with 1225T keyboard  and Acer 17 Inch LCD/LED Monitor)	Affirmative YEStation Mini 2252 Thin Client Terminal with 122-Key Keyboard and Acer 17 Inch LCD/LED Monitor ( Affirmative Part No.: 3502 plus LCD17 ) 3-Year Affirmative Warranty on 2252 and Keyboard 3-Year Acer Warranty on Monitor	Call for 800-597-2525 Availability
AFR1045T	Affirmative 1045T AS/400 Style 104-Key Keyboard for Affirmative Thin Client Terminals and PCs with PS/2 Connection - Black in Color ( Affirmative Part No.: 1045T ) 1-Year Affirmative Warranty	$ 129.00
AFR1225T	Affirmative 1225T AS/400 Style 122-Key Keyboard for Affirmative Thin Client Terminals and PCs with PS/2 Connection - Black in Color ( Affirmative Part No.: 1225T ) 1-Year Affirmative Warranty	$ 139.00
ACER-V176	NEW Acer 17 Inch LCD/LED Monitor 3-Year Acer Warranty	$ 119.00
AFR9206	12 Volt/2 Amp Power Supply For all Affirmative YEStation Models 222X and 224X Affirmative	$ 35.00

Download the  Affirmative YEStation Mini Thin Client 2242/2252 Brochure
