YEStation Mini - Model 2242
Full Featured Compact Size Thin Client
for i5, iSeries AS400, 3270, Windows & Citrix


Third-Generation Thin Client Terminals
Packed with Big Features in a Small Footprint


PLEASE NOTEThe YEStation Mini Model 2242 Thin Client Terminal is no longer manufactured but are   available as a refurbished product. The current replacement product is the CLI AG7000 Thin Client Terminal.  If a Centronics Parallel Printer Port is needed, the CLI IA8600 Thin Client Terminal is the alternative product.

Overview

The new YEStation Mini family of thin clients just raised the bar for performance, while lowering the desktop space requirement. Built around an Intel?-compatible SIS 550 processor that can run either Windows? CE.NET, Linux or XPe operating systems.

The YEStation Mini has a very small footprint - only 7.75" by 6" by 1.5" - and can be mounted vertically on a wall or attached to a monitor. The unit weighs only 1.5 pounds allowing for optimal mounting options, and low shipping costs.

The YEStation Mini Model 2242 provides a complete Terminal Emulation Suite including TN5250e, TN3270e, as well as others such as SCO-UNIX, ANSI, and various Wyse Terminal Emulations. ICA and RDP clients for connections to Windows Terminal Services and Citrix servers as well as an embedded Internet Explorer browser for access to Web-enabled applications, including email.

Download the  Affirmative YEStation Mini Model 2242 Data Sheet

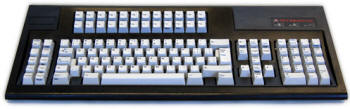

This 122-key keyboard provides a seamless transition from Twinax "dumb terminals" from IBM, CLI, Decision Data, Idea, Memorex, Praim and any other Twinax Terminal.

When moving from the 122-key layout to a standard PC keyboard, there are up to 36 new key combinations to be learned to perform the same tasks performed with a single keystroke on the Twinax terminal.  This lack of familiarity can produce a big loss in production and excess errors that would not be occurring if the user had their old, familiar keyboard.

With the Affirmative YEStation 2242 and 122-key keyboard, there is virtually no retraining when moving users from the old Twinax terminals to this now Ethernet connected terminal.

The only difference to the user is that their terminal is now connected over Ethernet instead of Twinax.  They will have the same layout and heavy duty keystroke feel as on the terminals being replaced.  No need to learn the new key combinations a standard PC keyboard would require.

The YEStation Minis advanced technology provides the best price/performance in the industry. Backed by Affirmative's superior technical support and six years of thin client experience with AS/400 and iSeries users, the YEStation Mini is an ideal enterprise-wide solution.

Mounting options include vertical or horizontal orientations and LCD monitor integration with VESA Mounting Option..

Click here for more information on the YEStation Mini Thin Client Terminal

Download the  Affirmative YEStation Mini Model 2242 Data Sheet

Technical Specifications

Item

Feature / Description

Processor

Sis 550

Input / Output connector support

10/100 dual speed Ethernet, Twisted Pair (RJ45)
One parallel port (DB-25 Female connector)
Enhanced PS/2 keyboard and mouse interfaces
Three USB ports (2 front, 1 back)

Operating Systems

Microsoft Windows CE.net

Display Resolution & Colors

Supports 640x480, 800x600, 1024x768, 1280x1024 with high color (16 bits)
Flicker free, up to 85 Hz

Memory Support

SDRAM -- 64 MB (max. 256MB)
Flash memory: DOC 16MB standard (max. 64MB)

Environment

Temperature

Operating : 5? C to 40? C (41? F to 104? F)
Storage : -40? C to 60? C (-4? F to 140? F)

Relative Humidity

90% maximum, non-condensing

Operating Altitude Range

0 to 10,000 feet (0 to 3050 meters)

Power

Full range auto-sensing 100 ~ 240 VAC at 50 Hz ~ 60 Hz; 10 Watts

Regulatory Compliance

UL, C-UL, TUV; FCC Class B; CE mark

Physical Characteristics

7.75 x 6.0 x 1.0 (Inches); Weight: 1.5 Pounds



Purchase On-Line





Item Number

DESCRIPTION

PURCHASE

AFR2242

Affirmative YEStation Mini 2242 Thin Client Terminal (no keyboard or monitor)
PORTS:  10/100mb  Ethernet, Parallel Printer, PS/2 Keyboard, 3 USB Ports
(Twin Data P/N: AFR2242R / Affirmative P/N.: 2242 )

6-Month Twin Data Corporation Warranty

Call
800-597-2525 For Pricing

AFR2252

Affirmative YEStation Mini 2252 Thin Client Terminal (no keyboard or monitor)
PORTS:  10/100/1000mb Ethernet, Parallel Printer, PS/2 Keyboard, 2 USB Ports
( Twin Data P/N: AFR2252R / Affirmative P/N: 2252)
6-Month Twin Data Corporation Warranty

Call
800-597-2525 For Pricing

PC104-5250U Affirmative 1045T AS/400 Style 104-Key Keyboard for Affirmative Thin Client Terminals and PCs with PS/2 Connection - Black in Color
( Affirmative Part No.: 1045T )

1-Year Affirmative Warranty

$ 129.00

AFR1225T Affirmative 1225T AS/400 Style 122-Key Keyboard for Affirmative Thin Client Terminals and PCs with PS/2 Connection - Black in Color
( Affirmative Part No.: 1225T )

1-Year Affirmative Warranty

$ 139.00

AFR1225TR REFURBISHED Affirmative 1225T AS/400 Style 122-Key Keyboard for Affirmative Thin Client Terminals and PCs with PS/2 Connection - Black in Color
90-Day Twin Data Warranty

Call for
800-597-2525 Availability

ACER-V176

NEW Acer 17 Inch LCD/LED Monitor
3-Year Acer Warranty

$ 149.00

AFR9206

12 Volt/2 Amp Power Supply
For all Affirmative YEStation Models 222X and 224X
Affirmative

$ 35.00

Click here for more information on the YEStation Mini Thin Client Terminal
