Printer Interfaces - Twinax and Coax
SCS & IPDS Interfaces |
 |
   |
PLEASE
NOTE:
The Praim printer interfaces listed below
are no longer manufactured.
If we do not have a specific product available we have listed the appropriate replacement product with each of the specific
Praim products and the links to information on them.
Please call us at 1-800-597-2525 or
1-908-688-8100 with any questions.
Please
CLICK HERE
for other Printer Connectivity options.
Overview
 Praim's Printer Interfaces present leading edge technology in a
new generation of Twinax and Coax interfaces for IBM Midrange and Mainframe systems as
well as Printer Servers for local Token Ring or Ethernet networks. Precision design,
combined with extreme compact dimensions and new innovative functionality, provide
efficiency and value for a wide range of desktop and departmental printers - either matrix
or laser. Praim's Printer Interfaces are versatile components that allow custom printing
solutions for complex and mixed environments.
Below is information on the various printer interfaces and their
major characteristics. These interfaces provide a great way to use lower cost PC
matrix and laser printers as fully featured AS/400 Twinax or 3270 type printers.

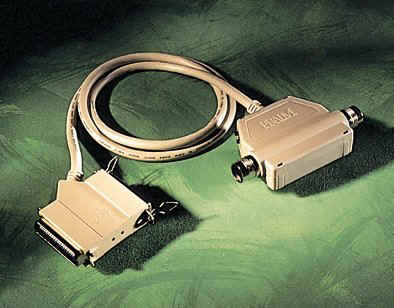

PR165 - Twinax SCS Printer Interface
PLEASE NOTE: The PR 165 is no longer manufactured.
Currently we have a good supply of the PR165 in stock.
The PR165 is a universal external Twinax Printer Interface with
firmware resident bar codes and large characters.
Emulates IBM 5256, 5224, 5225, 4214, 4234/2, 5219/D1 and 3812/1.
Support for continuous forms, 3 drawers,
envelope, manual feeders, simplex/duplex, auto page
orientation, and COR (Computer Output Reduction)
PR165 is available in four different models:
- PR165E-SHA : for printers up to 600 LPM/20PPM
with integrated PC Share.
- PR165E-PAR: for printers up to 600
LPM/20PPM
with a direct parallel connection to your PC printer.
- PR165E-SER: for printers up to 600 LPM/20PPM with a direct serial
connection to your PC printer.
- PR165S-SHA : high speed interface for printers up to 2000
LPM/50PPM with
integrated PC Share.
Click
Here For More Information on the PR165 Twinax Interface |
PR195 - Coax SCS-DSC/DSE Printer Interface
PLEASE NOTE:
This is a discontinued product and
is no longer manufactured.
The
Axis AX-7 Cobra Coax-to-Parallel Printer Interface is the replacement product.
Please click here
to be taken to the
Axis AX-7
Cobra Interface page.
|
PR086
PLEASE NOTE: This is a discontinued
product
and no longer manufactured.
The direct replacement product is the
Axis AX-3 Twinax Interface. Please
click
here to be taken to the AX-3 Twinax
Interface page.
- Internal Twinax printer interface for laser printers with HP MIO compatible
expansion slot.
- Easy installation and quick front panel configuration.
- Emulates : IBM 5256, 5224, 5225, 4214, 4234/2, 5219/D1 and 3812/1.
- Support for 3 drawers, envelope, manual feeders, simplex/duplex, auto page
orientation, and COR (Computer Output Reduction).
|
PR387TC
This is a discontinued product and
is no longer manufactured.
The
Axis AX-7 Cobra Coax-to-Parallel Printer Interface is the replacement product.
Please click here
to be taken to the
Axis AX-7
Cobra Interface page.

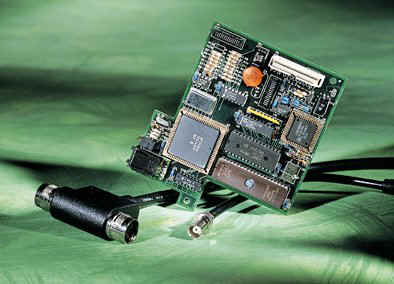

- Internal Twinax SCS and Coax SCS-DSC/DSE printer
Interface for Lexmark 4039 and Optra/Optra-N printers
with IOP interface.
- Twinax emulation for IBM 5256, 5224, 5225, 4214,
4234/2, 5219/D1 and 3812/1.
- Coax emulation for IBM 3287, 3268, 4214 and 3262.
- Support for 3 drawers, envelope, manual feeders, simplex/duplex, auto page
orientation, and COR
(Computer Output Reduction).
- Programmable system string substitution.
|
|
Praim offers both laser and matrix IPDS solutions for the Twinax environment.
All connect an IBM AS/400, S/3X or 5294, 5394, 5494 remote control units or compatibles to
a PC printer. |
PR102 - Twinax
matrix IPDS Interface
This is a discontinued product and
is no longer manufactured.
The
CBL Y-Cable - IPDS
Twinax for Matrix Printers is the replacement product
for providing Twinax IPDS to Parallel Port Matrix
Printers.
Please click here
to be taken to the CBL
Y-Box IPDS Twinax Interface for Parallel
Matrix Printers.
- Supports most important IPDS functions for PPDS (matrix), PPDS (laser), Epson FX,
Epson DFX, Epson LQ, and Bull Compuprint printers.
- Connects to most matrix, PC compatible printers or PPDS lasers.
- Emulates an IBM 4224/101 and 4234/12 printers.
- PC-Host share allows sharing the printer with other input devices.
- Two interface possibilities are provided : Centronics parallel and serial RS-232.
PR088Plus - Twinax Laser IPDS Interface
This is a discontinued product
 and
is no longer manufactured.
The I-O Corp.
4465 - IPDS Twinax
for Laser Printers is the replacement product
for providing Twinax IPDS to Parallel Port Matrix
Printers.
Please click here
to be taken to the I-O
Corp. 4465 IPDS Twinax Interface for Parallel
Laser Printers.
- IPDS support for PCL5 laser printers.
- Twinax attachment.
- Supports all IPDS towers.
- Connects to any laser printer with a standard Centronics
parallel port using Hewlett Packard PCL 5 emulation and
4MB of memory.
- Supports IBM AFP printers 4028-AS1, 3912-AS1, and
3812-2.
- 32 resident fonts (4028 emulation), 34 resident fonts (3912 emulation), and 67
resident fonts (3812 emulation).
- Standard 4MB memory and up to 16 MB upgrades.
- Up to five paper source trays capabilities with different page formats.
- Simplex/duplex, manual feed, and envelope feed capabilities.
- Manual and Envelope tray capabilities.
- Support 240 or 300 PEL enhanced printing.
- Host and Terminal configuration supported.
- PC Share.
- High speed Bi-tronics parallel printer interface.
Click
Here For More Information on the PR088 External IPDS Twinax Interface
for Laser Printers
|
|
