OmniTerm/750T - A Smart Choice in Thin Clients for
AS/400, 3270 & Unix

PLEASE NOTE:  The OmniTerm line of Ethernet Terminals is no longer manufactured.  The recommended replacement product for the OmniTerm is the Computer Lab International (CLI) AG7000.  Please click here to be taken to the AG7000 Thin Client Terminal page.

Overview

The OmniTerm/750t Ethernet Terminal combines all of the benefits of a dedicated ?SNA? terminal with industry-standard network connectivity and capability. Now MIS managers and Network Supervisors can give their users access to traditional IBM hosts (AS/400, iSeries, S/390, S/9000), UNIX hosts, Microsoft hosts, email and more ? all from a single Ethernet workstation. And because the OmniTerm/750t employs solid-state technology, this connectivity is achieved without the complexity and expense associated with traditional PC-based solutions.

Click here for more information on the OmniTerm 750t Ethernet Terminal

NLynx Technologies has drawn on its extensive IBM Midrange (AS/400, iSeries) and Mainframe (S/390, S/9000) knowledge and incorporated it into the OmniTerm family of thin clients.

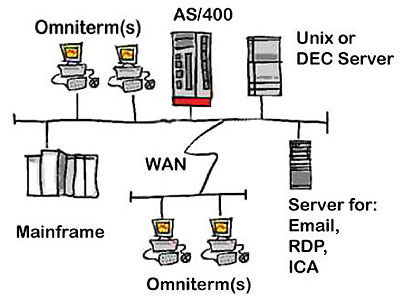

Connect to any host or data repository

• TN5250E for IBM AS/400 access
• TN3270E for IBM S/390, ES/9000 access
• VT100/220/320 for ASCII/ Unix host access

Solid-state design without any moving parts

• No floppy drive for data security
• No hard drive ? no viruses, no crashes
• No fans, no moving parts ? extends product life

Boots from its own ?flash? memory

• No boot server required - less network dependency
• No network overhead for the boot process
• Quick boot process means greater productivity

Fully upgradeable and updateable

• Update and upgrade electronically
       Omniterm/750t can be updated on the fly

Incorporates Industry-standard Components

• Industry-standard 10/100 Ethernet connection
• Eliminates proprietary wiring infrastructure

Controllable Cost of Ownership

• No moving parts, no viruses, no games
• Centrally-Managed upgrade decisions
• All the benefits of a true Ethernet terminal / Thin Client
• None of the disadvantages of a PC
• Extended product life-cycle
  • 3-year factory warranty

OmniTerm/750t, the smart choice:

• Integrated 10/100 MB Ethernet connection.
• SVGA compatible video support.
• Parallel printer port for local & host printing.
• Solid state, no moving parts or fans.
• Internet Explorer Email support.
• TN5250E & TN3270E client for IBM host access.
• VT100/220/320 for DEC & UNIX access.

All the advantages of Terminals, but without the Limitations!

The Omniterm/750t is the ideal Ethernet-Terminal replacement for legacy SNA terminals. All OmniTerms connect across Ethernet topologies, as opposed to the legacy Twinax or Coax wiring infrastructures for dumb terminals. The Omniterm/750t delivers all of the same look-and-feel features that a traditional ?dumb? terminal user expects, but in a thin client platform.

And the Omniterm/750t (unlike terminals) also supports email, without adding the expensive overhead of a PC. Your existing POP3 email servers (Lotus Notes, CCMail, Microsoft Exchange, and many more) that are providing email service to existing PC users can be used to deliver email to the Omniterm/750t Ethernet terminals. The Omniterm/750t Ethernet terminal offers the best of both worlds ? the simplicity, efficiency and economics of a SNA terminal combined with the flexibility and power of an Ethernet LAN-attached PC. And all of this is achieved without the bloated cost-of-ownership associated with today?s PCs

Click here for more information on the OmniTerm/750t Ethernet Terminal

Product Specifications

OmniTerm Family Platform

• Dimensions (HxWxD)
  • 2.4 x 9.75 x 7 inches.
  • 6 x 25 x 18 centimeters.
• OmniTerm Weight: 2.0 lbs., 1.0 kg
• 122-Key Keyboard weight: 2.5 lbs (1.2 kg)

Shipping Weights:

Omniterm: 4.0 lbs (1.8 kgs)

122-key Kbd: 5.0 lbs (2.3 kgs)

Power: 10W max (all models)

Voltage: 110-240 Volt auto sensing (50/60 Hz)

Frequency: 50/60 Hz (all models)

Operating Temperature: 10? C to 40? C  (50? F to 104? F)

Relative Humidity: 10-80% (non-condensing)

Certifications: CE, UL, CSA, FCC

OmniTerm/750t Text-mode Applications

• TN5250 /5250E emulation, including Host printing
• TN3270 /3270E emulation, including Host printing
• VT100/220/320 emulation
• Email (POP-3 Client)

Standard Features

• Parallel Printer port
  • Support for a large range of Laser, InkJet and Dot Matrix printer emulations

Local language support for:

• French
• German
• Italian
• Spanish
• UK English
• US English

Traditional terminal features include the following:

• 122-key keyboard support
• Play and record
• Reconfigure the ?Enter? key.
