OmniTerm Thin Client Ethernet Terminal

OmniTerm - The Smart Choice in Thin Clients for
AS/400, 3270 & Unix

PLEASE NOTE: The OmniTerm line of Ethernet Terminals is no longer manufactured. The alternative product for the OmniTerm is the I-O Corporation 2677e Ethernet Terminal. Please click here to be taken to the the 2677e page.

Overview

Industry-standard 10/100 MB Ethernet
connection. Eliminates proprietary wiring infrastructure.
POP3 E-Mail Client Standard
Easy plug and play! No boot server required.
Connect to any host. TN5250/TN5250E, TN3270/3270E, TNVT included.

Click here or on picture above to download the Data Sheet for the OmniTerm

Click here to request additional information on Thin Client Terminals
and Ethernet Display Stations

The OmniTerm family of thin clients combines all of the benefits of a dedicated ?SNA? terminal with industry-standard network connectivity and capability. Now MIS managers and Network Supervisors can give their users access to traditional IBM hosts (AS/400, S/390, S/9000), UNIX hosts, Microsoft hosts, email and more ? all from a single thin client Ethernet workstation. And because OmniTerm is a true thin client that employs solid-state technology, this connectivity is achieved without the complexity and expense associated with traditional PC-based solutions.

Decision Data has drawn on its extensive IBM Midrange (AS/400) and Mainframe (S/390, S/9000) knowledge and incorporated it into the OmniTerm family of thin clients.

The OmniTerm/750t is a text-only thin client that includes support for TN5250E, TN3270E, VT100/220/320, email and host printing. This unit is not upgradeable to any of the other OmniTerm models.

The OmniTerm/800ex is a text-based thin client that includes all of the OmniTerm/700t functionality as described above, but is field-upgradeable to the OmniTerm/850gx Graphical unit.

The OmniTerm/850gx is a true Graphical thin client that supports Netscape Communicator, ICA, RDP, Java and Java Virtual Machine, as well as all of the OmniTerm/700t functionality described above. The OmniTerm/850gx is the smart choice when it comes to thin clients. It delivers access to AS/400, Mainframe, UNIX, ICA, RDP, Internet and intranet applications at an affordable price. Whenever investment protection and cost of ownership are key decision criteria, the OmniTerm/850gx is clearly the thin client of choice.

Click here to request additional information on Thin Client Terminals
and Ethernet Display Stations

The OmniTerm thin client family, the smart choice:

Integrated 10/100 MB Ethernet connection.
SVGA compatible video support.
Parallel printer port for local & host printing.
PS2 Mouse port.
Solid state, no moving parts or fans.
Netscape Communicator & Email support.
TN5250E & TN3270E client for IBM host access.
VT100/220/320 for DEC & UNIX access.
ICA & RDP for Server-based application access.
USB & Serial ports for future applications.

Connect to any host or data repository

TN5250E for IBM AS/400 access
TN3270E for IBM S/390, ES/9000 access
Netscape Communicator for e-mail, Internet and intranet access
Java & Java Virtual Machine
ICA for access to Citrix Server applications
RDP for access to Windows® Terminal Server applications
VT100/220/320 for ASCII/ Unix host access

Solid-state design without any moving parts

No floppy drive for data security
No hard drive ? no viruses, no crashes
No fans, no moving parts ? extends product life

Boots from its own ?flash? memory

No boot server required - less network dependency
No network overhead for the boot process
Quick boot process means greater productivity

Fully upgradeable and updateable

Update and upgrade electronically
OmniTerm/700t can be updated to latest code
OmniTerm/800ex can be updated to latest code
OmniTerm/800ex is electronically field-upgradeable to the OmniTerm/850gx

Incorporates Industry-standard Components

Industry-standard 10/100 Ethernet connection
Eliminates proprietary wiring infrastructure
Configuration choices - locally or server-based

Controllable Cost of Ownership

No moving parts, no viruses, no games
Centrally-Managed upgrade decisions
All the benefits of a true Thin Client
None of the disadvantages of a PC
Extended product life-cycle

Click here to request additional information on Thin Client Terminals
and Ethernet Display Stations

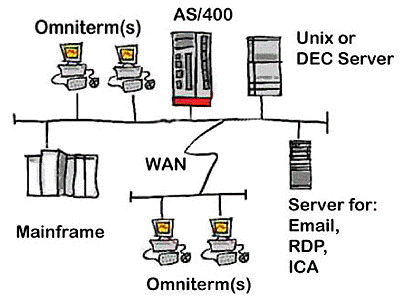

OmniTerm Thin Client Diagram

All the advantages of PCs & Terminals, but without the Limitations!

OmniTerm/700t

The OmniTerm/700t is an ideal Ethernet-based thin client replacement for legacy SNA terminals that are still connected via legacy Twinax or Coax wiring infrastructures. The OmniTerm/700t delivers all of the same look-and-feel features that a traditional terminal user expects, but in a thin client platform connecting across an Ethernet topology. These traditional features include:

A 122 key keyboard (the same keyboard as used on Decision Data legacy terminals)
Multiple concurrent SNA host sessions (up to 5)(8 on /gx).
Printing - local or host-addressable via the parallel port.
Keystroke macros & extensive user customization capabilities.
Access to multiple AS/400 and/or Mainframe hosts.

And the Omniterm/700t (unlike terminals) also supports email, without adding the expensive overhead of a PC. Your existing POP3 email servers (Lotus Notes, CCMail, Microsoft Exchange, and many more) that are providing email service to existing PC users can be used to deliver email of the OmniTerm family of thin clients. The OmniTerm/700t thin client offers the best of both worlds ? the simplicity, efficiency and economics of a SNA terminal combined with the flexibility and power of an Ethernet LAN-attached PC. And all of this is achieved without the bloated cost-of-ownership associated with today?s PCs.

OmniTerm/800ex

This thin client from Decision Data is expandable/upgradeable from Text to Graphics functionality. It includes all of the OmniTerm/700t text capabilities and yet it is electronically upgradeable to the /850gx graphics functionality. Ideal for those users where a text-based thin client satisfies their needs today, but who want the reassurance that the unit can be upgraded as required to the full Graphics capability. This upgrade requires NO hardware changes. The Text to Graphics transition is achieved electronically, seamlessly delivering the richness of the OmniTerm/850gx thin client from Decision Data

OmniTerm/850gx

The ultimate in network-centric thin clients, the OmniTerm/850gx from Decision Data has inherited all of the great qualities associated with terminals and PCs, but without any of their bad habits! This model combines the Text functionality of the /700t with a GUI. The OmniTerm/850gx Graphical User Interface (GUI) provides the user with access to all of the major ?data repositories? available today, including; AS/400?s, Mainframes, Citrix Servers, Microsoft Terminal Servers, Email, Internet access, Intranet access, UNIX, DEC, etc. Web browsing is via the industry-standard Netscape Communicator.

Product Specifications

OmniTerm Family Platform

Dimensions (HxWxD): 2 x 11.4 x 8.9 inches (5.1 x 29.1 x 22.6 centemeters)
Weight: 5.5 lbs., 2.4 Kg.

OmniTerm/700t & 800ex for Text-mode Applications

TN5250 /5250E emulation, including Host printing
TN3270 /3270E emulation, including Host printing
VT100/220/320 emulation
Email (POP-3 Client)
OmniTerm/800ex is easily field-upgradeable to the OmniTerm/850gx Graphics model.

OmniTerm/850gx for Graphics Applications

TN5250 /5250E emulation, including Host printing
TN3270 /3270E emulation, including Host printing
Up to eight (8) concurrent TN5250/TN3270 sessions
VT100/220/320 emulation
Netscape Communicator with email
Support for Java & JVM (Java Virtual Machine)
ICA for accessing Citrix Server applications
RDP for accessing Windows® Terminal Server applications

Standard Features

Parallel Printer port - Support for a large range of Laser, InkJet and Dot Matrix printer emulations
PS2 Mouse port
2 Serial ports (for future applications)
USB port (for future applications)
