iTwinax Controller - Model 2407
Twinax-over-TCP/IP
Support up to 7 Twinax Devices

Connects Twinax Display Stations and Printers to an AS/400-iSeries Over
Any IP Connection

PLEASE NOTE The iTwinax Controller is no longer manufacturedThe replacement product is the eTwinax Controller.  Please click here to be taken to the eTwinax Controller page.

Overview

The Affirmative iTwinax Controller connects IBM and IBM compatible Twinax display stations and printers to an AS400-iSeries host via TCP/IP over an Ethernet LAN. The iTwinax is ideal for those who are migrating their AS/400-iSeries to an Ethernet environment.

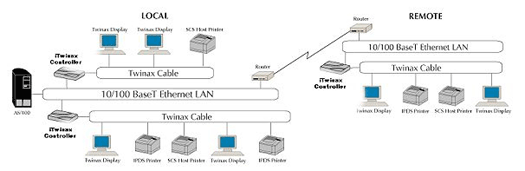

Affirmative iTwinax Controller map

  • Reliable Twinax displays and IPDS/SCS printers can operate in an Ethernet
    environment

  • Eliminates the need for expensive IBM Twinax Work Station Controllers

  • In locations requiring remote access, the I-O 5794ip replaces expensive remote
    controllers

  • No need for high-priced leased lines or expensive DSU/CSU modems

  • No re-cabling – continue to utilize existing Twinax or twisted pair cabling

  • Supports up to 28 logical sessions (4 sessions per device)

  • Supports up to 4 AS/400-iSeries hosts

  • Supports TN5250e, SNA and AnyNet

  • Easy to install

Click here for more information on the iTwinax Controller

Specifications


General
    - Attaches up to 14 Twinax displays and printers
    - Star Panel compatible (Maximum 7 devices)
    - Supports up to 4 hosts
    - Allows up to 4 sessions per Twinax address
    - Supports TCP/IP (TN5250e, AnyNet) and SNA
      protocols

• Host Systems and Requirements
    - AS/400-iSeries
    - OS400 V3R2 and newer
    - TCP/IP
    - Telnet services

• Display Stations
    - All 5250 Twinax display stations
    - Display model type is matched to Telnet models:
    5251m11, 5291-1, 5292-2,
    3180-2, 3179-2, 3196-A1, 3477-FG,
    3477-FC (InfoWindow II and Extended Character
    Attributes not supported)

• Printers
    - All 5250 SCS and IPDS Twinax printers
    - TN5250e – host configures all SCS printers as 3812-1
      (IPDS printers are not supported under TN5250e)
    - AnyNet – host recognizes the printer’s model type
    - SNA – host recognizes the printer’s model type

• Data Streams
    - TN5250e, auto configuring local and remote
      connectivity (SCS)
    - AnyNet, auto configuring local and remote connectivity
      (IPDS and SCS)
    - SNA, auto configuring local connectivity (IPDS and
      SCS)

• Network
    - 10/100 BaseT auto-sensing
    - TCP/IP (TN5250e, AnyNet)
    - DHCP client
    - SNA (APPC)
    - Ethernet (IEEE 802.2, 802.3)

• Ports
    - RJ45 for Ethernet
    - DB9 for Twinax Dual-Phase “V”
      Connector (cable included)
    - DB25 parallel for diagnostic printouts

• Approvals
    - Logic Unit – FCC 15, CE
    - Power Supply – UL, CE

• Power Supply
    - Input – 110 to 240 volt AC auto-ranging
    - Output – 5 volt DC, 2.5 amp (shield
      grounded)

• Physical
    - 8-7/16 x 5-9/16 x 1-3/8 inches
      (21.5 x 14.1 x 3.5 cm)
    - 14.3 ounces (405 grams)
    - Temperature range +40 to 100 F
      (5 to 42 C)
    - Relative humidity 10% to 90%, non-
      condensing

Click here for more information on the iTwinax Controller

Additional Features


Features Benefits
Investment Protection When installing an Ethernet LAN that is attached to an AS/400–iSeries, reliable Twinax displays and IPDS/SCS printers can operate in the new Ethernet environment maintaining the usefulness of the equipment
Eliminates the Need for Twinax Work Station Controller A significant saving is realized by installing an I-O 5794ip Twinax Controller instead of an expensive IBM Twinax Work Station Controller
No IBM Remote Controller Required When remote access to an AS/400–iSeries is required, an expensive IBM or IBM compatible remote controller is replaced by an economical I–O 5794ip Controller
No Leased Lines or Expensive Modems When communicating to a remote site, there is no need to spend valuable resources on high-priced leased lines and special modems.
No Re-cabling The I-O 5794ip allows Twinax displays and printers to be connected to existing Twinax or twisted pair cabling eliminating the expense of re-cabling
Multiple Protocols Supports the auto configuring TN5250e and AnyNet for remote locations or SNA for a local attachment
Multiple Host Supports up to 4 hosts
Multiple Sessions Up to 4 sessions per physical device can be configured – Up to 56 logical sessions supported






|
