5435e IPDS Print Servers
for i5, iSeries, AS/400 & Mainframe

An IPDS/SCS Print Server to Connect Printers, Copiers, and MFPs to IBM iSeries AS/400s & zSeries S/390 Systems and Provide Full Support for AFP/IPDS Printing

PLEASE NOTE:  All "dp", "e" and "km" models of I-O Corporation 5435, 5735 and 5755 IPDS Print Servers and Print Server Gateways are no longer manufactured.   The replacement for the 5435e, 5735e and 5755e is the next generation I-O Win10 Adaptio IPDS Print Server Gateway .  Please click here to be taken to the Win10 Adaptio IPDS Print Server Gateway page.

Overview

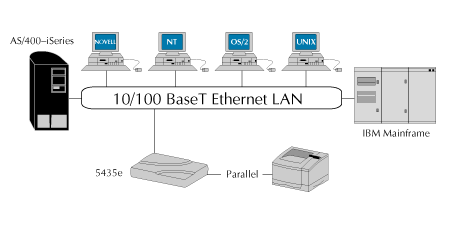

The I-O 5435e is a single port, multi-protocol print server that provides support for IPDS (Intelligent Printer Data Stream) and AFP (Advanced Function Printing) using IBM's over Ethernet networks from an IBM i5, AS/400 - iSeries or Mainframe - zSeries Host.

If you need IPDS and IBM Host connectivity for a printer that DOES NOT have a Parallel Port or need to connect more than 1 printer or MFP, or  please click on the following links for other I-O Corporation IPDS connectivity solutions:



Features

  • Connects one PCL 5e compatible parallel laser printer

  • Supports Advanced Function Printing (AFP) using IPDS protocol

  • Also supports standard Host printing using SCS protocol

  • Supports over 100 AFP/IPDS Fonts

  • 10 / 100 Mbps Ethernet LAN, auto sensing

  • Multiple Host support (Power9, Power8 and all iSeries AS/400, and z14, z13 and all zSeries S/390)

  • Multiple LAN protocols (TCP/IP, SNA, ANYNET)

  • Host printing via TCP/IP Telnet (TN5250e and TN3270e), SNA (APPC) or AnyNet

  • Simple, one step set-up (auto configuration) when using TN5250e or TN3270e

  • Host controlled printing, including error reporting, page range printing etc.

  • I-O's award winning IBM AFP/IPDS and SCS printer emulations

  • EBCDIC to ASCII conversion done by the 5435e, frees host resources and increases print speeds

The unique design of the I-O AFP/IPDS Print Server allows a single PCL 5e laser printer to appear to the host as two separate type printers (IPDS and SCS) at the same time. Multi-host capabilities allow up to ten IBM hosts to send SCS printing to a single printer.

In today?s expanding LAN environment, I-O?s easy-to-use PrintControlTM utility supports multiple I-O Print Servers. This powerful utility makes initial set up, administration, and updates a painless and simple task

Click here to request additional information



IBM Features:
i5, iSeries & AS/400

IBM Features:
S/390 and zSeries

LAN (ASCII) Features:

? Supported Protocols for Midrange Printing:
- TCP/IP (TN5250e)
- TCP/IP (LPR/LPD)
- SNA (APPC)
- AnyNet (SNA over TCP/IP)

? SCS Twinax Emulations:
- IBM 3812-1 (SCS)

? IPDS Twinax Emulations:
- IBM 4028 AS1
- IBM 3812-2/
- IBM 3816-1D/S

? IPDS Towers
- Supports all towers

? Supported Printers
- AnyPCL 5e printer

? System Requirements
- OS/400 Release 3.1 or higher

? Supported Protocols for IBM Mainframe Printing:
- TCP/IP (LPR/LPD)
- TCP/IP (PPR/PPD)

? IPDS Emulations:
- IBM 4028 AS1
- IBM 3812-2 (includes 4312/17 font support)
- IBM 3816-1D/S

? IPDS Towers
- Supports all towers

? System Requirements for OS/390 or MVS
- PSF/MVS Version 2.2.0 with APR OW15599;
MVS Scheduler with APRA 0212236;
TCP/IP Version 3 Release 1 or higher

? Supported Protocols for LAN (ASCII) printing:
- TCP/IP (LPD/LPR)
- Novell IPX/SPX
- NetBIOS
- Windows 95/98 Peer-to-Peer

? Supported LAN (ASCII) Hosts:
- Novell (NDS, bindery, PSERVER, RPRINTER)
- Windows 95, 98, NT
- Windows for Workgroups
- OS/2 Warp, OS/2
- UNIX

? Supported Ethernet Connections:
- 10BaseT, 100BaseT (auto-sensing)

? Printer Ports:
- 1 IEEE 1284 bi-directional
Centronics parallel port



Additional Features

Features

Benefits

AS/400 & Mainframe printing over Ethernet

Allows IBM Host print jobs to be seamlessly printed over a LAN.

Full IPDS Support

Take advantage of all the IPDS towers for full function printing.

Enhanced Telnet 5250 (TN5250e) and
Enhanced Telnet 3270
(TN3270e)

Communicate with the AS/400 using native TCP/IP for IPDS/AFP and SCS printing.

True Print Complete

No more wondering when a print job is complete.

Duplex Support

Print on both sides of the page for more efficient printing (for duplex printers).

Page Offset Functions

Provides more flexibility in page positioning. No need to modify host applications.

Supports over 100 IPDS Fonts

Provides more fonts to choose from than other IPDS interfaces, including IBM 4312/17 emulation fonts.

On-board FLASH Memory

Allows for field upgrades of interface code. Always support the latest new features from I-O.

True IBM printer emulations

Permits full-function IBM Host printing on the attached LAN printer.

IPDS + SCS printer sessions

Maximizes your printer investment and printing speed.

Simultaneous, multi-host printing
(TCP/IP, IPX/SPX, NetBEUI, SNA, AnyNet)

Maximizes printer utilization by supporting concurrent printing not only from the IBM Hosts but from Windows, Novell,  OS/2, UNIX, etc.

10BaseT and 100BaseT

Protects print server investment when upgrading the LAN to 100 Mbps.

Configuration Utility

Provides simple configuration from a local or remote network.

Powerful RISC processor

Takes advantage of the LAN printer's maximum print speed even when processing IBM Host print jobs.
