I-O 5730e SCS Print Server Gateway
For IBM Power Systems, iSeries & zSeries

A Network Appliance to Provide Connectivity to iSeries AS/400 & zSeries S/390 Network Attached Matrix, Laser, MFPs and Barcode Printers

PLEASE NOTE: The I-O Corporation 5430b, 5430e, 5431b, 5450e, 5730e and 5750e are no longer manufactured. The direcreplacement t for the 5730e is the next generation I-O 5760e iSeries/zSeries SCS Print Server Gateway . Please click here to be taken to the 5760e Print Server Gateway page.

Overview

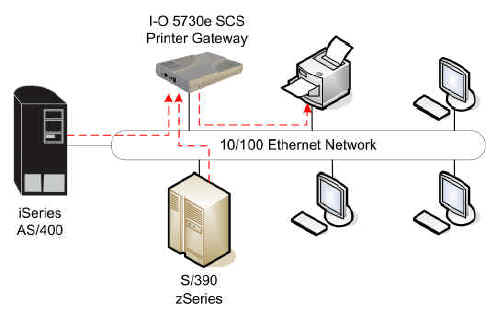

The I-O 5730e SCS Printer Gateway is a high speed Ethernet-in, Ethernet-out SCS gateway print server designed to convert native IBM Power9, Power8, Power7, iSeries AS/400 i5 or zSeries S/390 zSeries print jobs to allow them to be printed by any printer on the Ethernet LAN. The 5730e delivers IBM SCS printing via TCP/IP, providing the control and printer feedback found in an IBM host environment.

If you need IPDS connectivity for your laser printers and MFPs, click here to see the 5765e IPDS Print Server Gateway.

Download Datasheet

Features

Connects one PCL 5e compatible ethernet capable laser printer
Supports Standard Host Printing using SCS protocol
High speed printing - over 300 pages per minute
10 / 100 Mbps Ethernet LAN, auto sensing
Multiple Host support (Power9, Power8 and all iSeries AS/400, and z14, z13 and all zSeries 3S/390)
Multiple LAN protocols (TCP/IP, SNA, ANYNET)
Host printing via TCP/IP Telnet (TN5250e and TN3270e), SNA (APPC) or AnyNet
Simple, one step set-up (auto configuration) when using TN5250e or TN3270e
Host controlled printing, including error reporting, page range printing etc.
I-O's award winning IBM SCS printer emulations
Increases print speeds
Easy to install and use, includes I-O's Configuration Utility software

High Speed Printing

Attached to the LAN, the 5730e supports high-speed, high-performance printers. Without the bottleneck of a slow parallel port, the 5730e supports speeds of up to 300 pages per minute. Whether printing from an IBM i5, iSeries, AS/400 or a zSeries-S/390, fast printing can be obtained with matrix printers or PCL laser printers. In addition to the Ethernet connection, the 5730e has a parallel port to directly attach a printer if it does not have an Ethernet connection.

Full Print Queue Control from IBM Host

The 5730e offers the same reliable, full-function IBM host printing and control found with traditional direct attached Twinax/Coax printers. With the 5730e Print Server Gateway your printer is configured as a true "Device" printer and not a "Remote Out Queue Printers". Your IBM host print jobs are not lost in the black hole of "Remote Out Queue" LAN printing. The 5730e provides bi-directional communication between the printer and the IBM host, allowing error reporting and page range printing.

Some of the print queue features you will get back are:

Page Range Printing - Permits users to print select page ranges from large documents and reports.
Forms Alignment Messages - Get the forms alignment messages you are familiar with you need for precise alignment of your pre-printed forms, something you do not get with Remote Out Queue printing
Printer Error Reporting - Prevents loss of IBM Host print data by providing same level of print status reporting as a direct system attached Twinax or coax printer.
True IBM iSeries AS/400 and S/390 zSeries Printer Emulations - Permits full-function IBM Host printing on the attached LAN printer. 3812-01 (SCS) laser, 4214 matrix and 5224/25/56 matrix printer emulations.
No Host Print Transform - No need to waste valuable processor cycles on EBCIDIC to ASCII translation. The 5450e / 5430e handles that all with it's own embedded RISC processor.
Simultaneous Multi-Host Printing - Maximizes printer utilization by supporting concurrent printing not only from the IBM Hosts but from Windows, UNIX, etc.

Easy to Use

I-O's Configuration Utility software is included with every 5730e. Whether selecting TCP/IP or SNA, configuration is made easy through the use of a menu-based utility.
