TwiNetTC100 - TN5250e IP Gateway
Secure i5,iSeries and AS/400 Internet Access

TwinetTC - Twinax System Console GatewaySecure TN5250e Display and Printing for i5, iSeries and AS/400s From Anywhere with an IE Web Browser Over any IP Connection - LAN,
WAN, VPN or Internet with SSL TCP/IP

Overview

The TwiNetTC100 is an highly reliable embedded device that acts as an HTTPS/SSL Secure Gateway to any IBM i5, iSeries or AS/400 that supports TCP/IP.

The TwiNetTC application

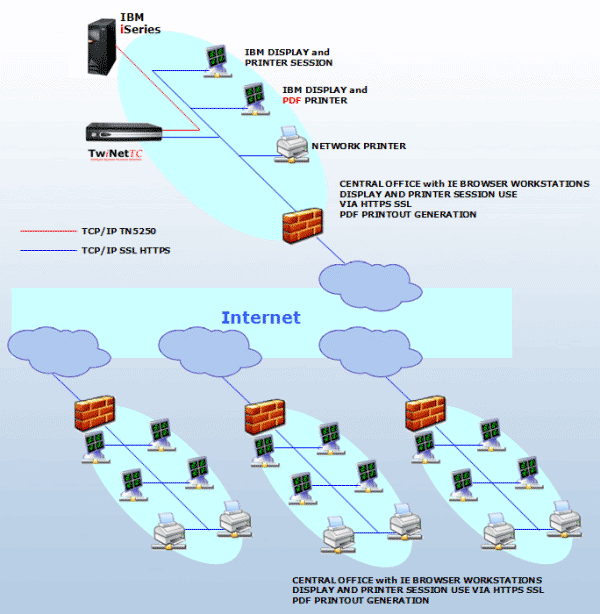

  • Example of a typical
    TwiNetTC100 Installation
    (Click on image below
    for a larger version)

  • Secure Web access to AS/400 applications
    Because TwiNetTC uses SSL/HTTPS, it is possible to access AS/400 display sessions remotely without a security risk.


  • No Client Side Installation
    With TwiNetTC100 display emulation sessions are accessed via a browser using ActiveX control.


  • PDF printer session.
    The TN5250E printer session produces PDF printouts that are directly displayed to the associated user. These can be printed or saved for later review.

Click Here if you need Remote Access to your Twinax System Consoles over a TCP/IP connection.



Featured Highlights

  • The Sessions are "kept alive" on the TwiNetTC100 - Simply reconnect if you lose your connection and pick up where you left off. It keeps the Twinax connection active even if there is an interruption in the TCP/IP network traffic to the TwiNetTC. This assures that when a display session is reconnected, the session is exactly as it was when the disconnect occurred.

  • 100 TN5250e Sessions - Named Display Sessions and Printer Sessions ensure the same user or session always has the same printer as output

  • PDF Printing Sessions - True "named session" printing

  • No Client Side Installation Needed

Click here for More Information on the TwiNetTC100 TN5250e Gateway
Download the TwiNetTC Data Sheet

TwiNetTC100 Installation Diagram

Click here for More Information on the TwiNetTC100 TN5250e Gateway


TwiNet supports any Windows 7, Vista, XP or Windows 2000 Client.

Technical Specifications

Specification

 Description

Operating System

PC Side:

Windows Vista, XP, 2000

Host Side:

AS/400 - iSeries - i5: V3R2 to V6RX

Hardware Requirements

AS/400 - iSeries - i5 with Ethernet Feature

Connectors

1 RJ 45 10BaseT, 100BaseT (auto-sensing)

LEDs

Power, Link, 10/100, Check, Alert, Packet and Collision.

Main Power

External Power Supply: 100-240V AC 50-60Hz Input / 5V DC Output

Warranty

One Year

Click here for More Information on the TwiNetTC100 TN5250e Gateway



Ordering Information

Item Number PRODUCT PURCHASE

CMTWINETTC100

TwiNetTC100 TelNet Gateway
100 TN5250e/TN3270e Telnet Sessions
(no Twinax connections)

Call Us For
Availability

CMTWINETTC

TwiNetTC SNA Gateway
One (1) Twinax Host Connection
7 Twinax Device Addresses
1 required for each i5, iSeries AS/400 or LPAR host port connection

Call Us For
Availability

CMTWINETTC4

TwiNetTC4 SNA Gateway
Four (4) Twinax Host Connections
28 Twinax Device Addresses
1 required for each four (4) i5, iSeries AS/400 or LPAR console or host port connections

Call Us For
Availability

Download the TwiNetTC Data Sheet
