Model 3010 & Lyric 3015
AS400 Remote Controllers


PLEASE NOTE: This is a discontinued product and no longer available.
The replacement product is the Xip+ Twinax Controller.
Please click here to be brought to the Xip+ Twinax Controller page.

Please Click Here for More Information on Remote Communication Controllers

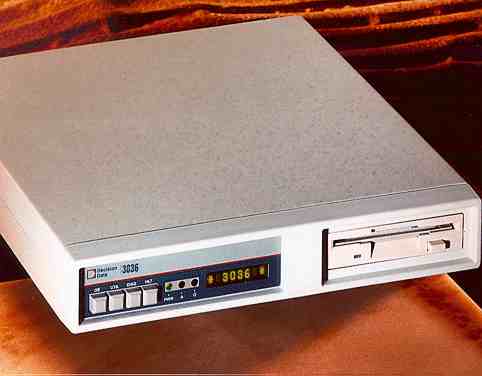

3010.jpg (13193 bytes)The Decision Data 3000 series  controllers manage the operation of Twinax devices and provide communication to System 36/38 or AS/400 Systems. Model 3010 and 3015are fully plug compatible and interchangeable with IBM 5294 and 5394 Remote Control Units.(Click on Picture for specifications)

Highlights:

  • Compatibility
  • Flexibile device attachment
  • Easy installation and use
  • Enhanced price performance
  • Small footprint
  • Offline, Windows based configuration utility



Advantages and Features

Compatiblity and Flexibility

Both 3010 and 3015 models are compatible with SDLC and X.25 protocols. One host attachment is provided for access to an AS/400 or System 36/38 support up to 56 Kbps with a RS-232 interface and up to 64 Kbps using V.35 or X.21 interfaces. They are also compatible with a variety of IBM programs, including OfficeVision/400, DisplayWrite/36, and Text Management/38.

Both models have 3 ports and support up to 8 and 16, 5250 compatible devices, respectively. Each port connects to seven addressable units using Twinax or twisted pair cabling. The 3010 and 3015 support up to 4 or 8 devices when attached to a System 36/38 or 8 to 16 devices when attached to an AS/400. Connection to System 36/38 is via 5294 emulation. AS/400 connection is via 5394 emulation.

Easy, Economical Installation and Upgrade

Systems managers will appriciate the powerful easy-to-use configuration tools. Controller customization is easy, using standard 3.5" diskette drive to store device, keyboard, and communication configuration parameters. Convenient, online, menu-driven controller configuration makes installation fast and smooth. A Windows-based offline configuration utility enables the system diskette to be configured without being connected to the control unit.

Upgrades are easy; with no downtime for reconfiguration. Field installable upgrades for the 3010 extends its capabilities to match the Decision Data Model 3015 controller. Remote file transfer using PC Support, Client Access and IBM emulation enables access to applications without additional software costs.

Please note
:  The 3010 Remote Controller is only available as a refurbished unit and subject to availability.

The Decision Data Advantage

With their small footprints, the 3010 and 3015 are designed for space saving in remote office settings. They are cost-effective, high performance devices that provide flexible and compatible remote connectivity solutions for System 36/38 and AS/400 environments. The 3010 and 3015 come with a 1 year warranty and a 90 day money back guarantee.

Decision Data is ISO certified and widely recognized for its high-quality, cost-effective midrange solutions. In fact, we've won an unequaled 26 Buyers Choice Awards since 1990. With Decision Data, you will get the added benefit of 25 years midrange systems experience. You choose a great computer. Choose the right remote controller. Only from Decision Data.






|
